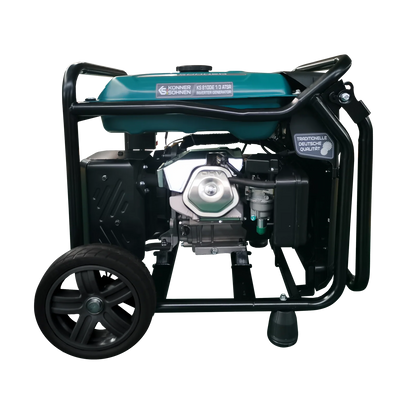

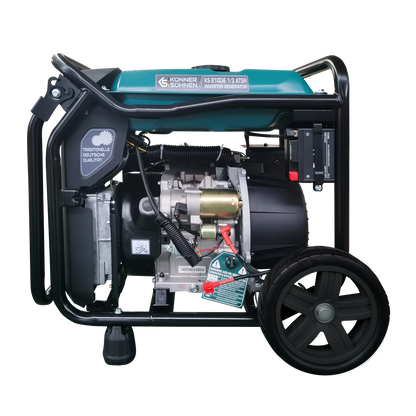

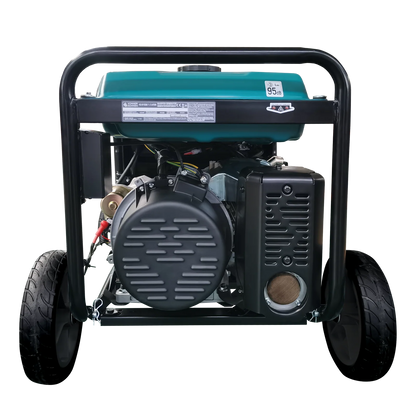

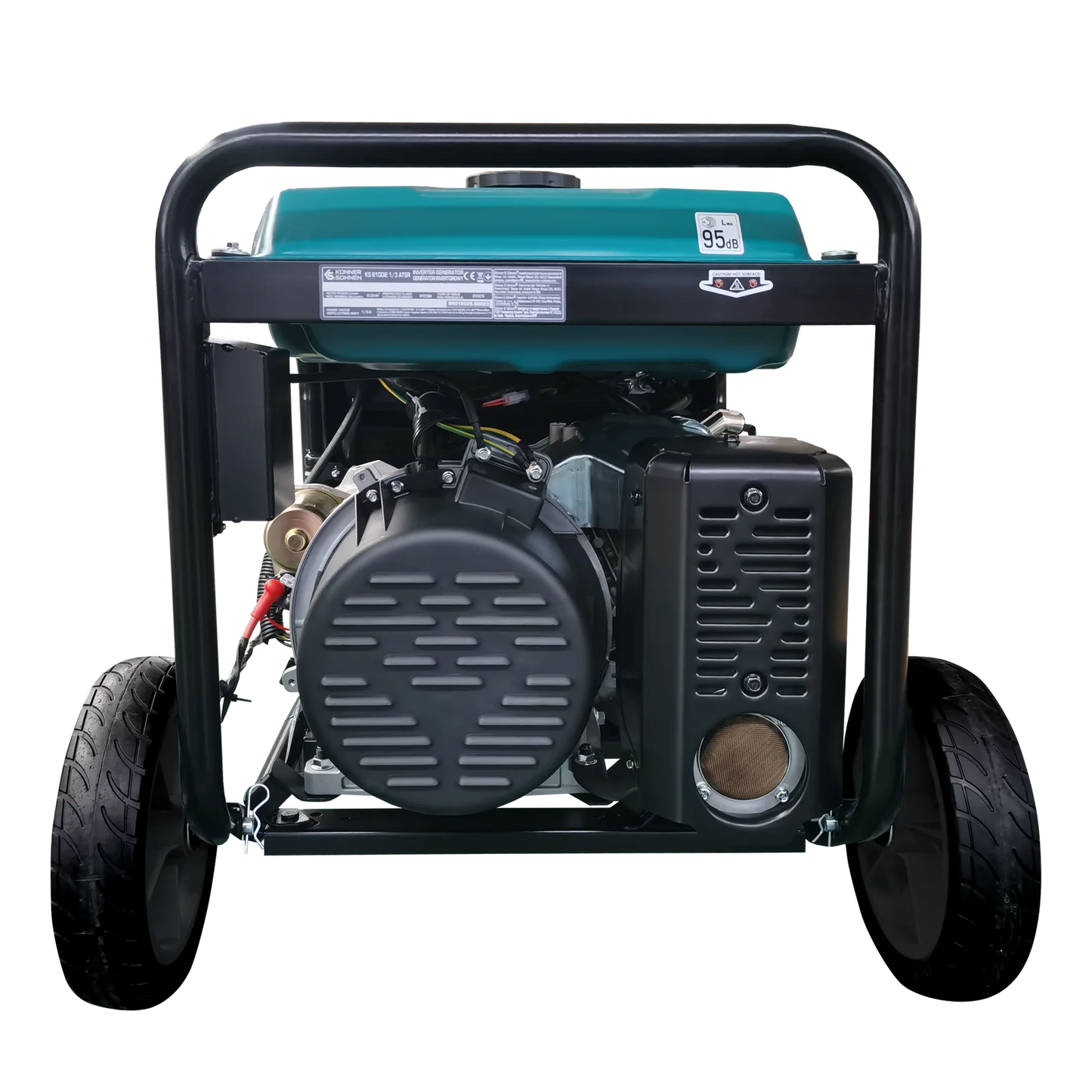

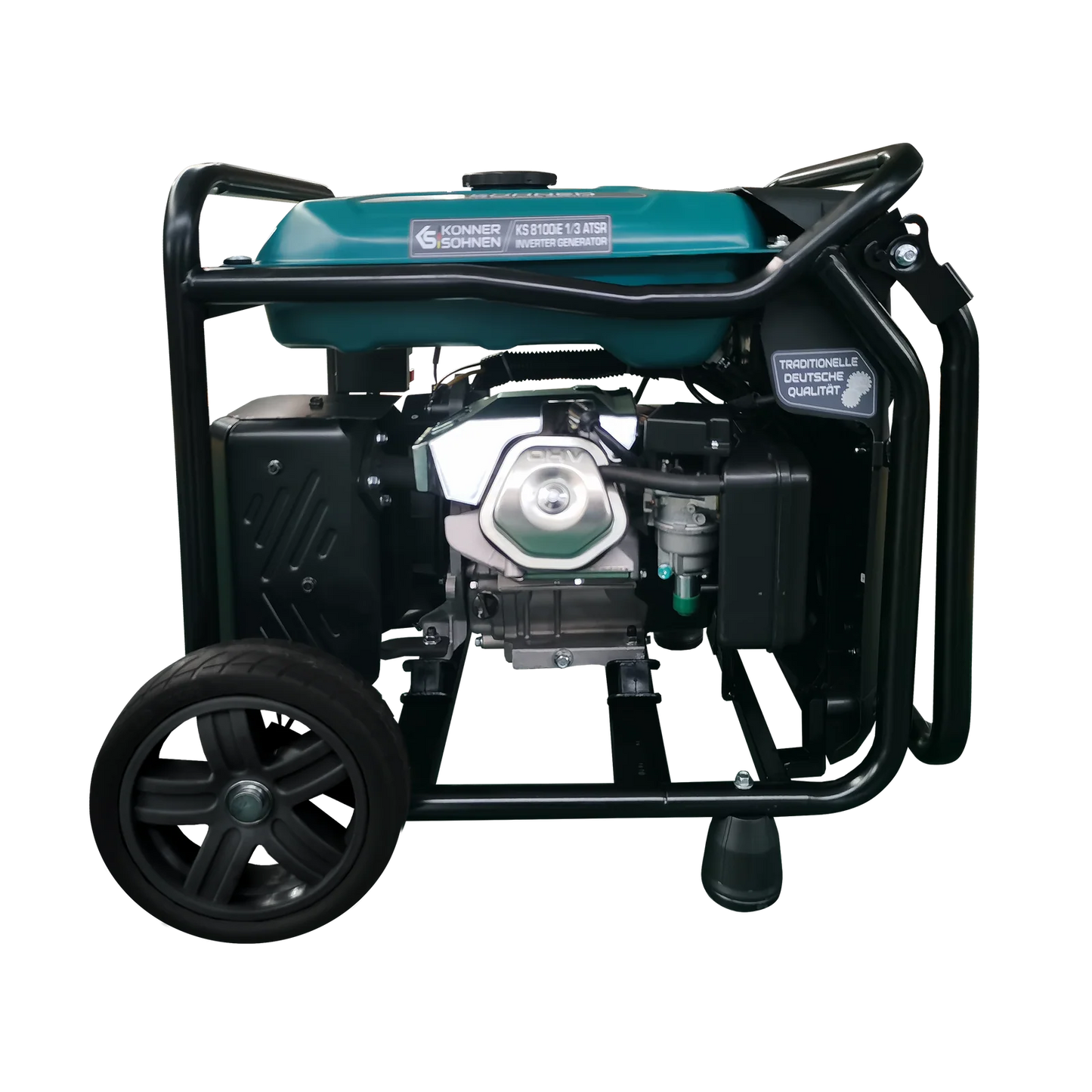

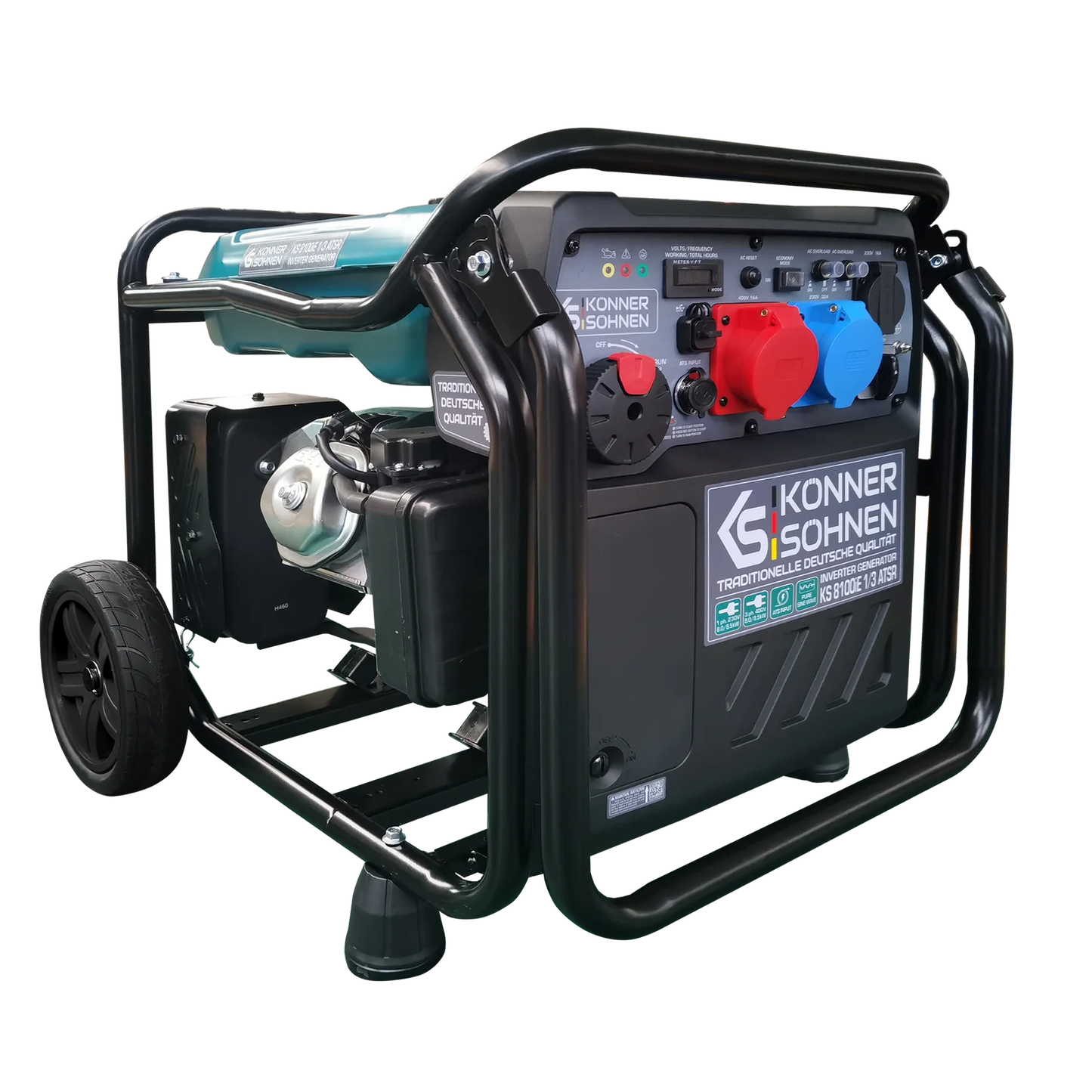

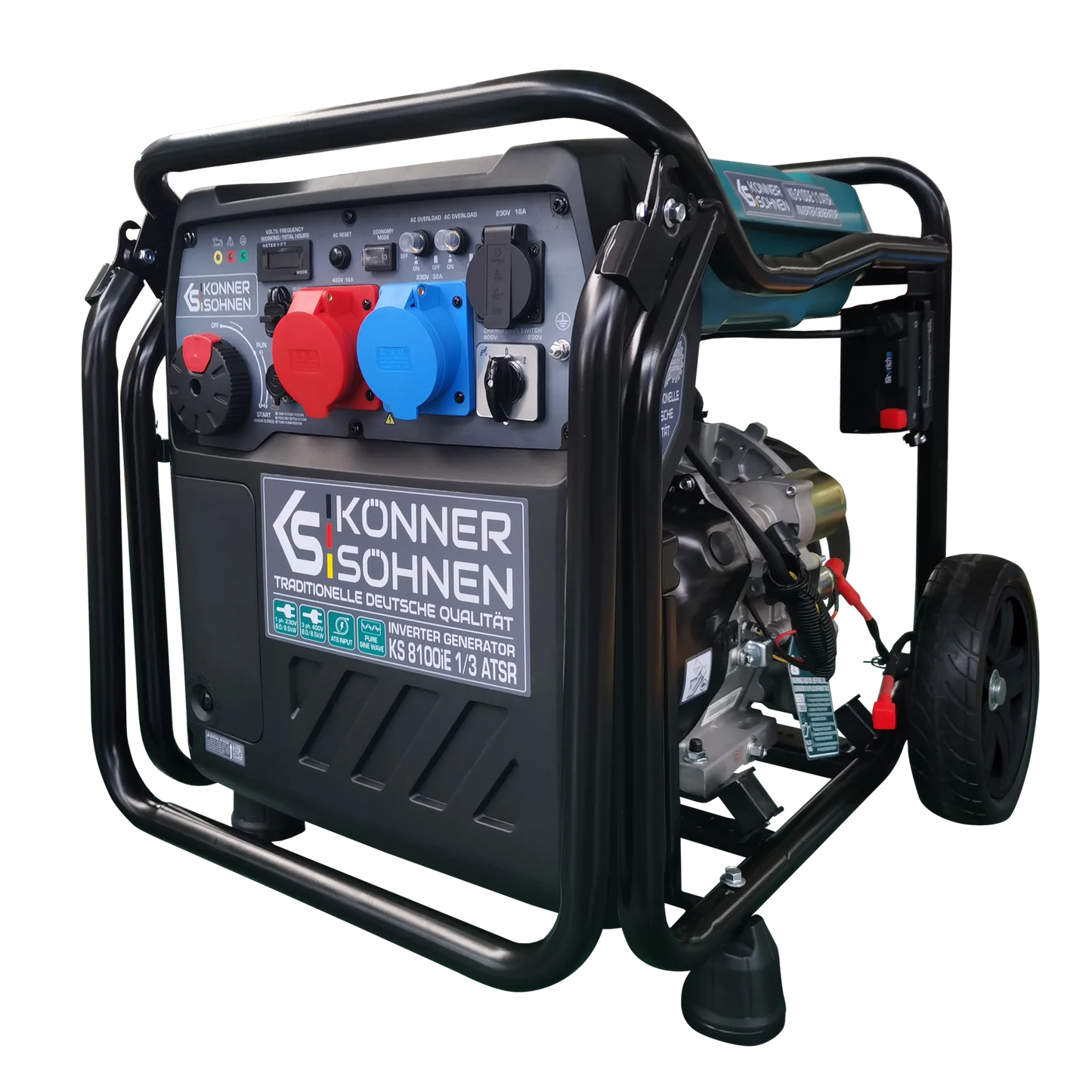

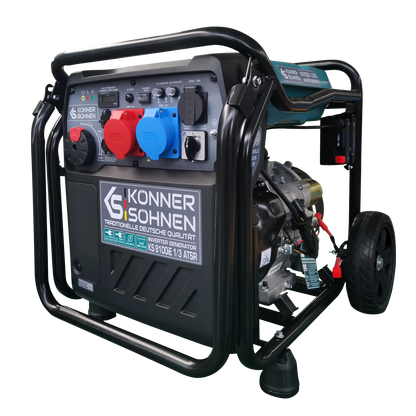

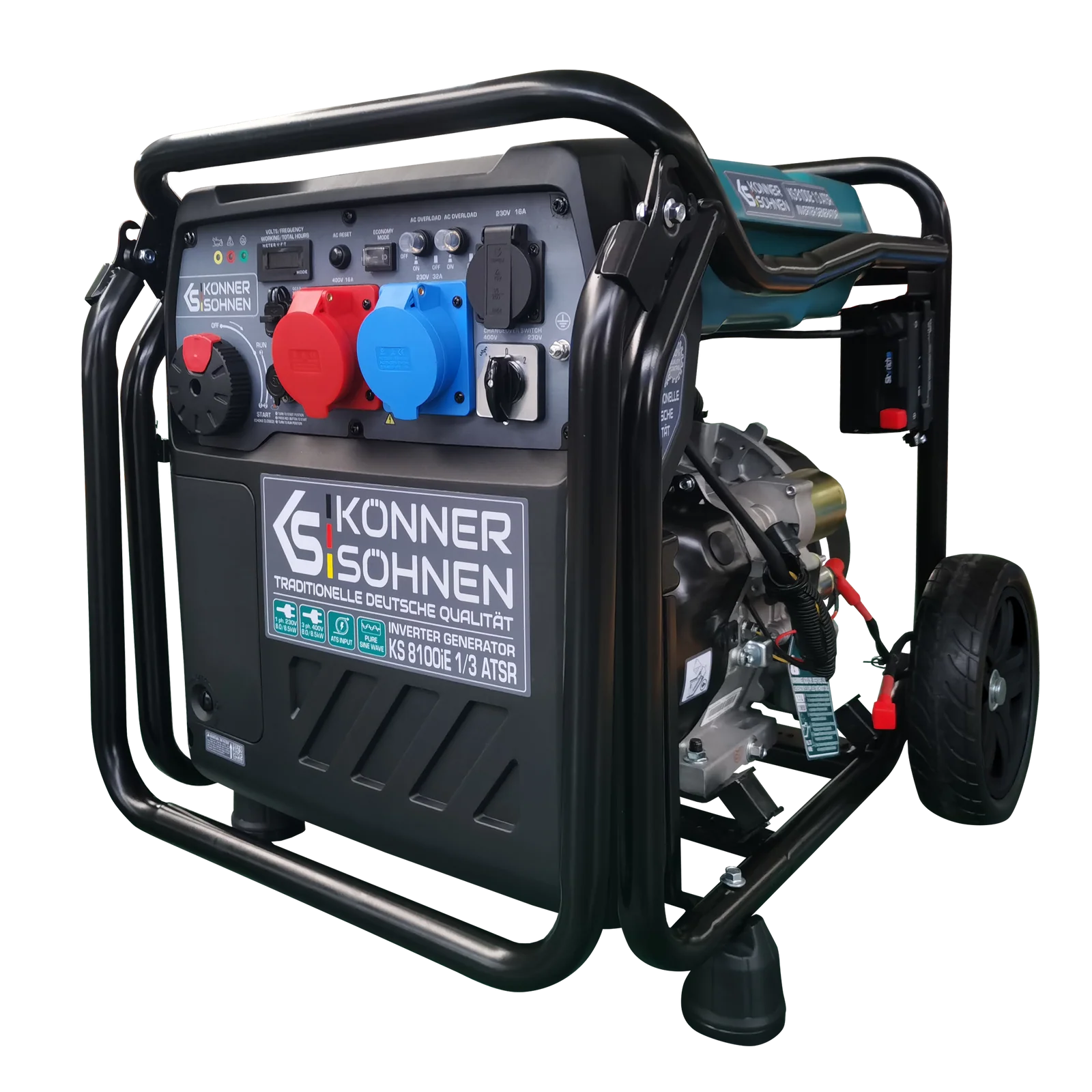

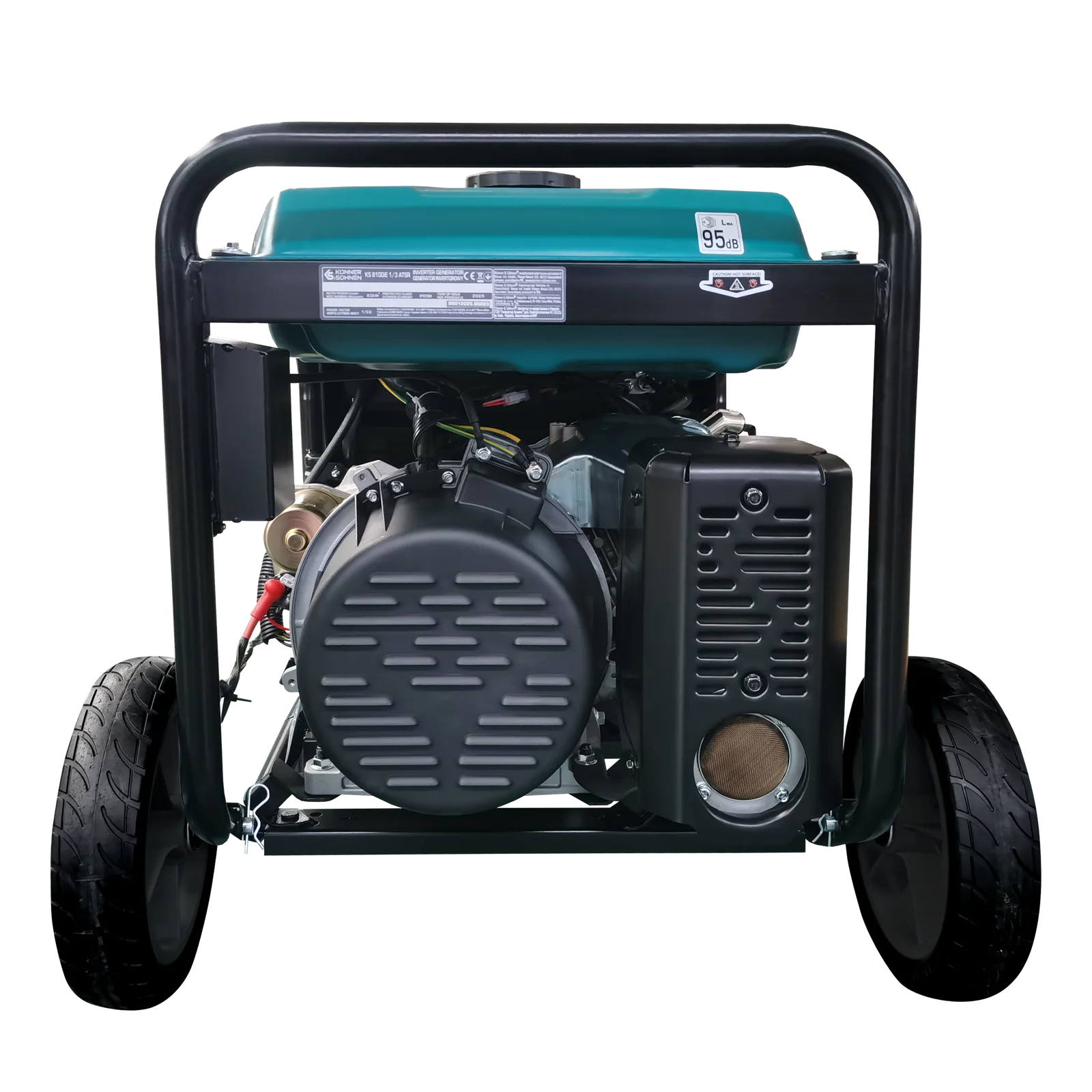

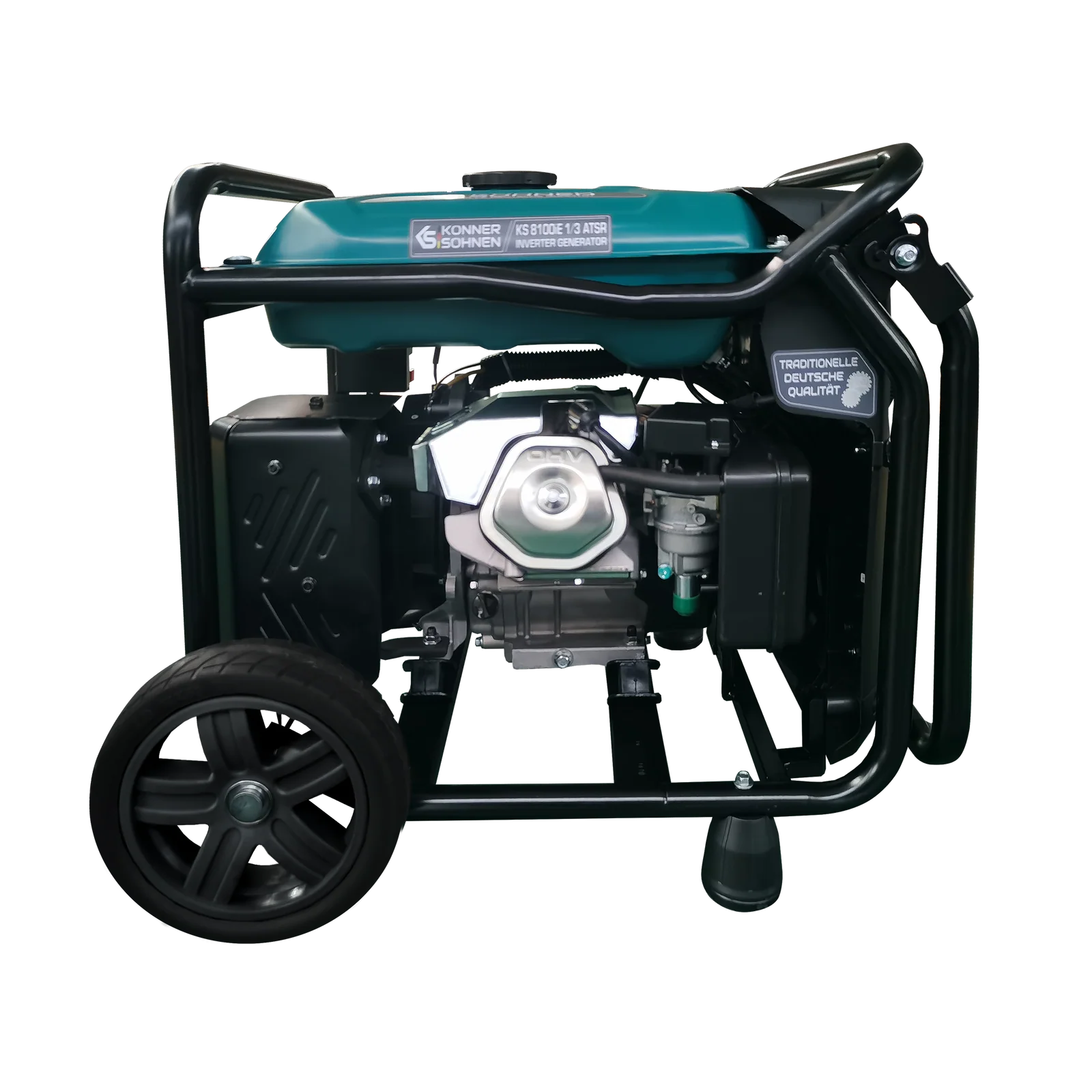

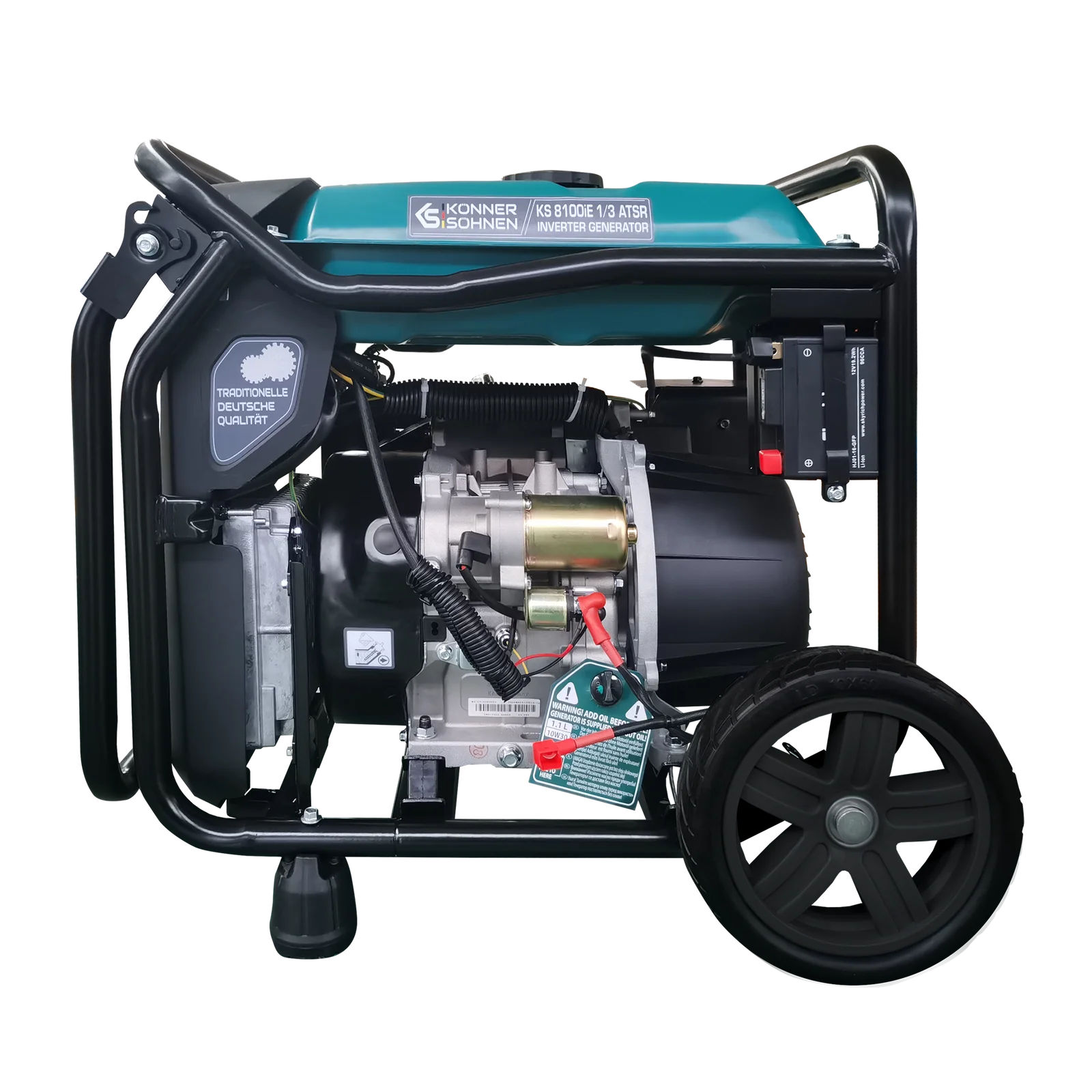

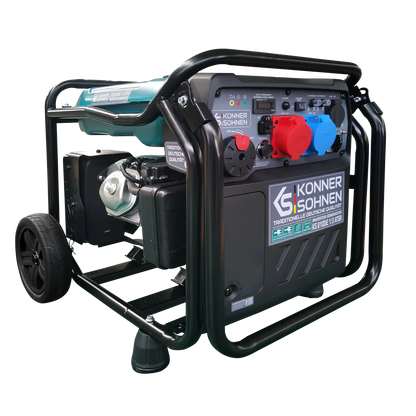

"Könner & Söhnen" Inverter Generator KS 8100iE 1/3 ATSR - 8kW Rated Power (230/400V available without switching losses) - Petrol Engine
"Könner & Söhnen" Inverter Generator KS 8100iE 1/3 ATSR - 8kW Rated Power (230/400V available without switching losses) - Petrol Engine
Couldn't load pickup availability
The KS 8100iE 1/3 is a reliable and versatile power source that combines thoughtful ergonomics and technical performance – fully justifying its price.
Product description:

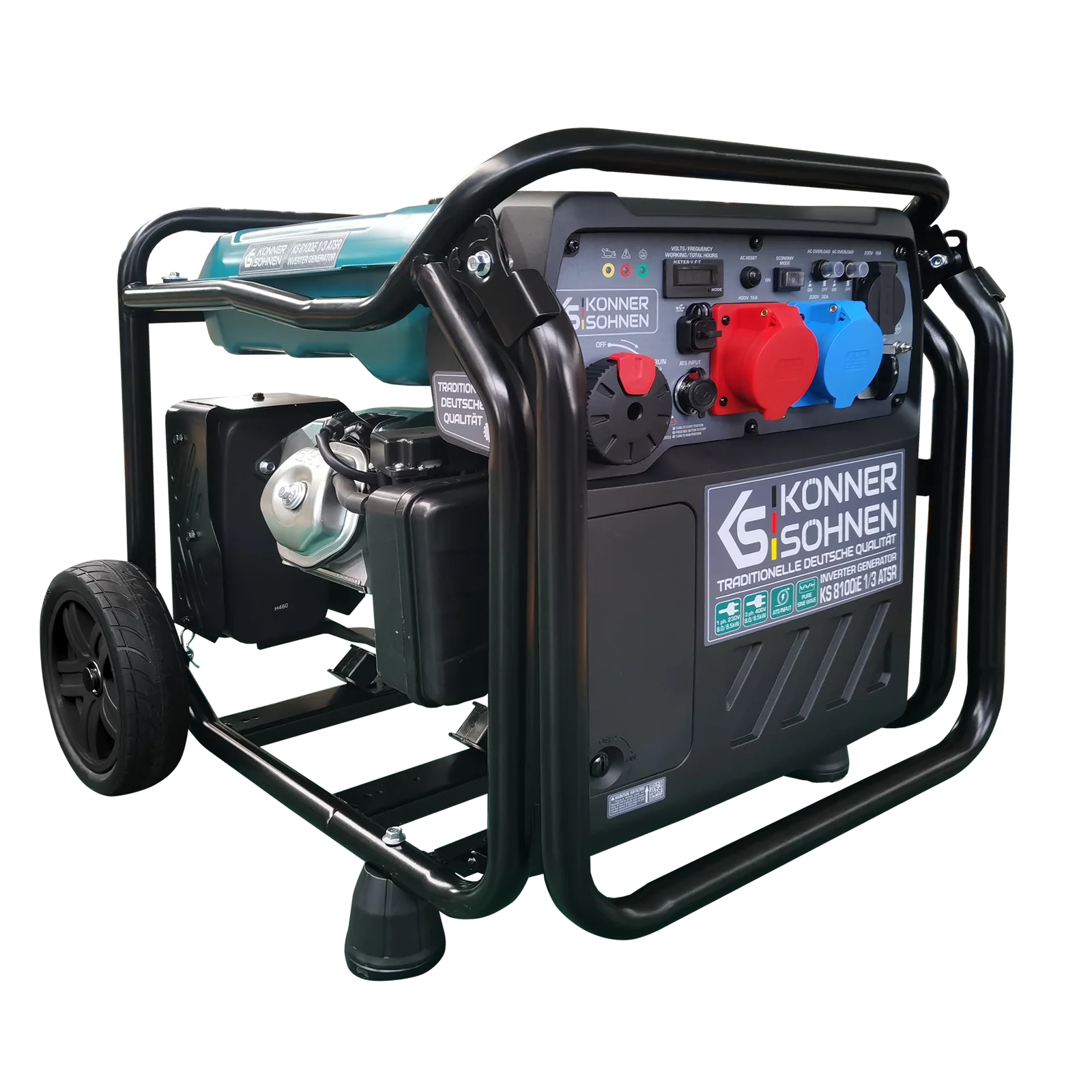

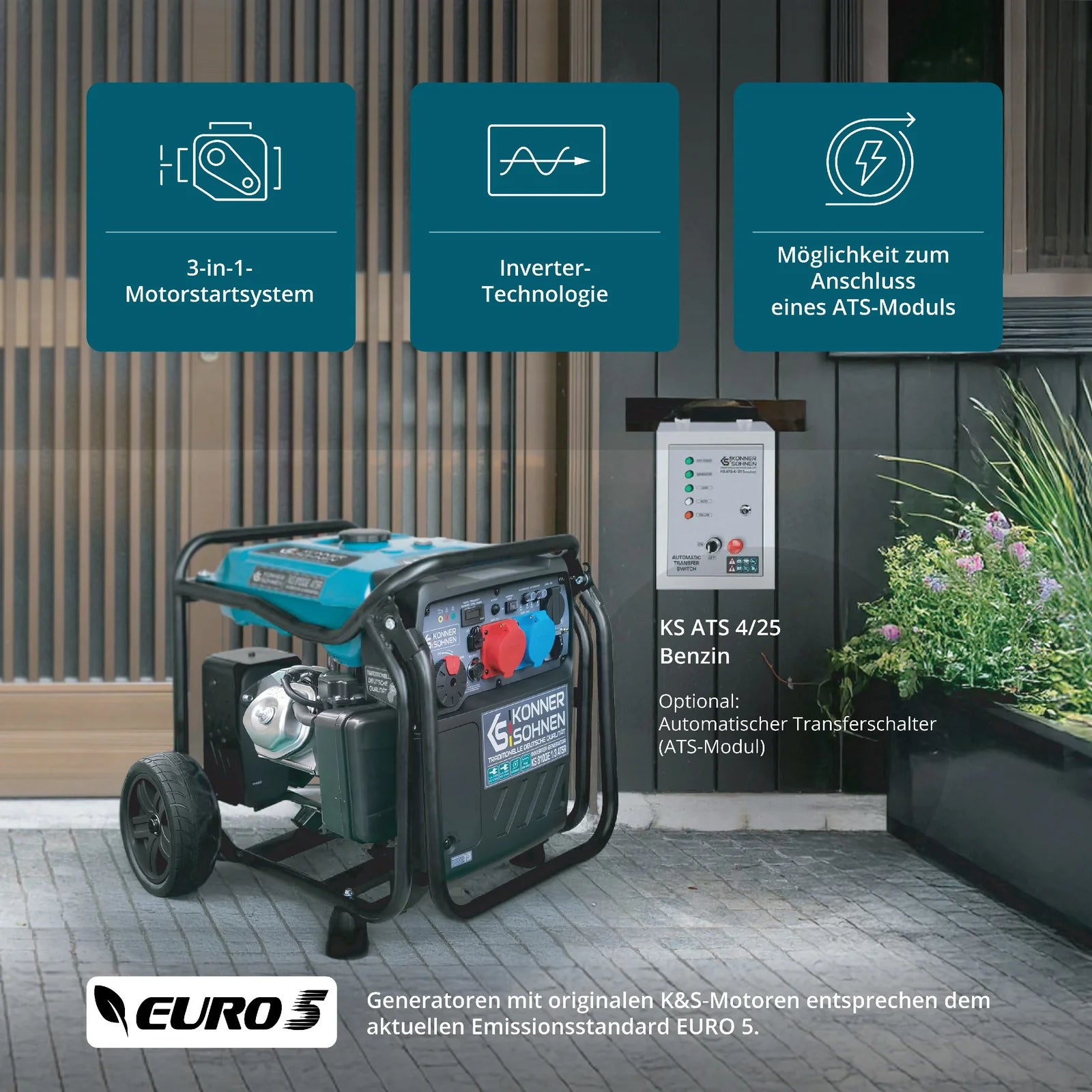

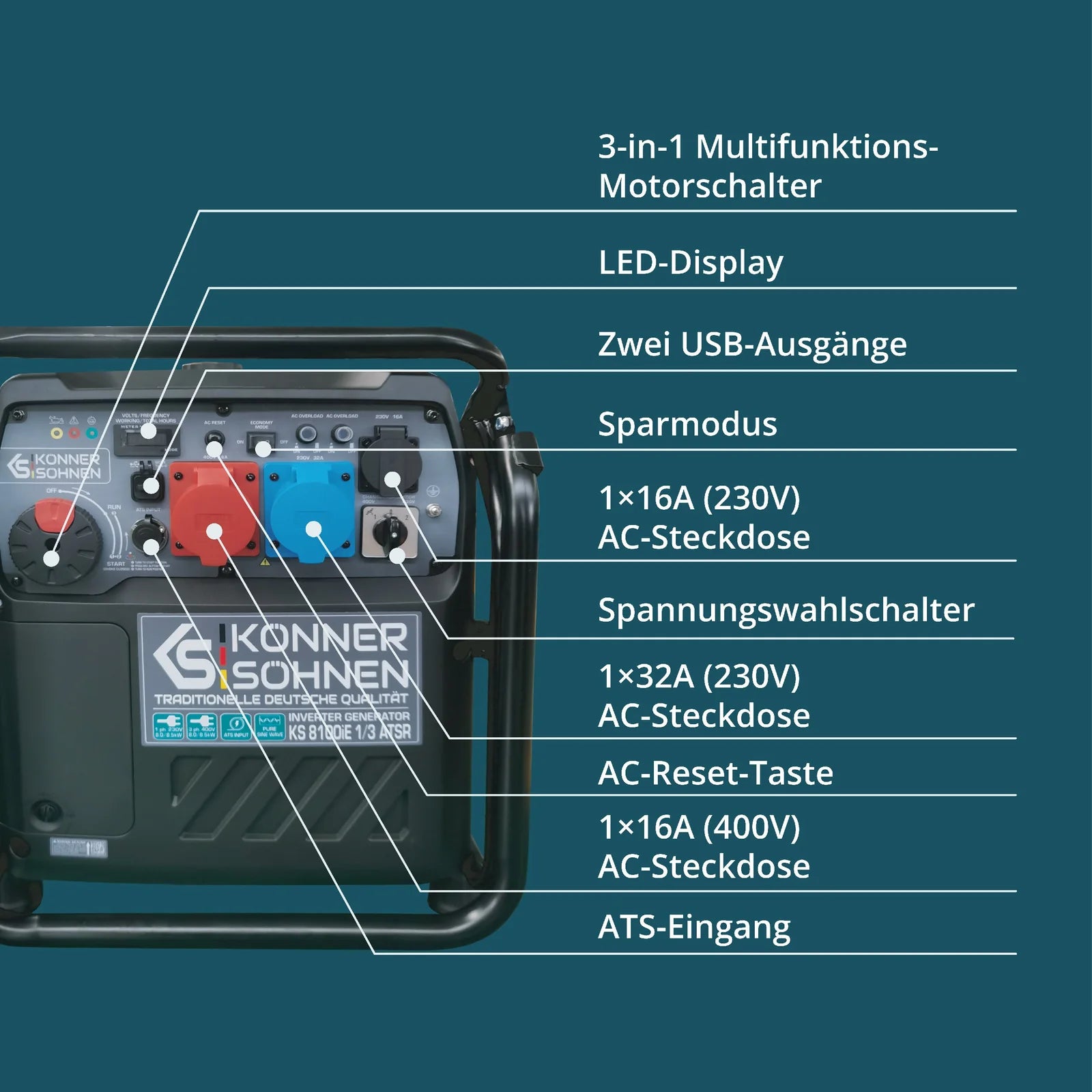

The Könner & Söhnen KS 8100iE 1/3 ATSR inverter generator, with a maximum output of 8.5 kW and a VTS system, allows operation in single-phase and three-phase modes without power loss. It features a EURO V K&S engine, ECONOMY mode, ATS support, a 3-in-1 starting system, an LED display, USB ports, and the following sockets: 1 x 16A (230V), 1 x 32A (230V), and 1 x 16A (400V). The 100% copper alternator and transport kit ensure durability and convenience. Ideal for sensitive electronics such as medical devices and AV equipment – stable even under heavy loads.
specification
| Operating voltage, V | 230/400 |

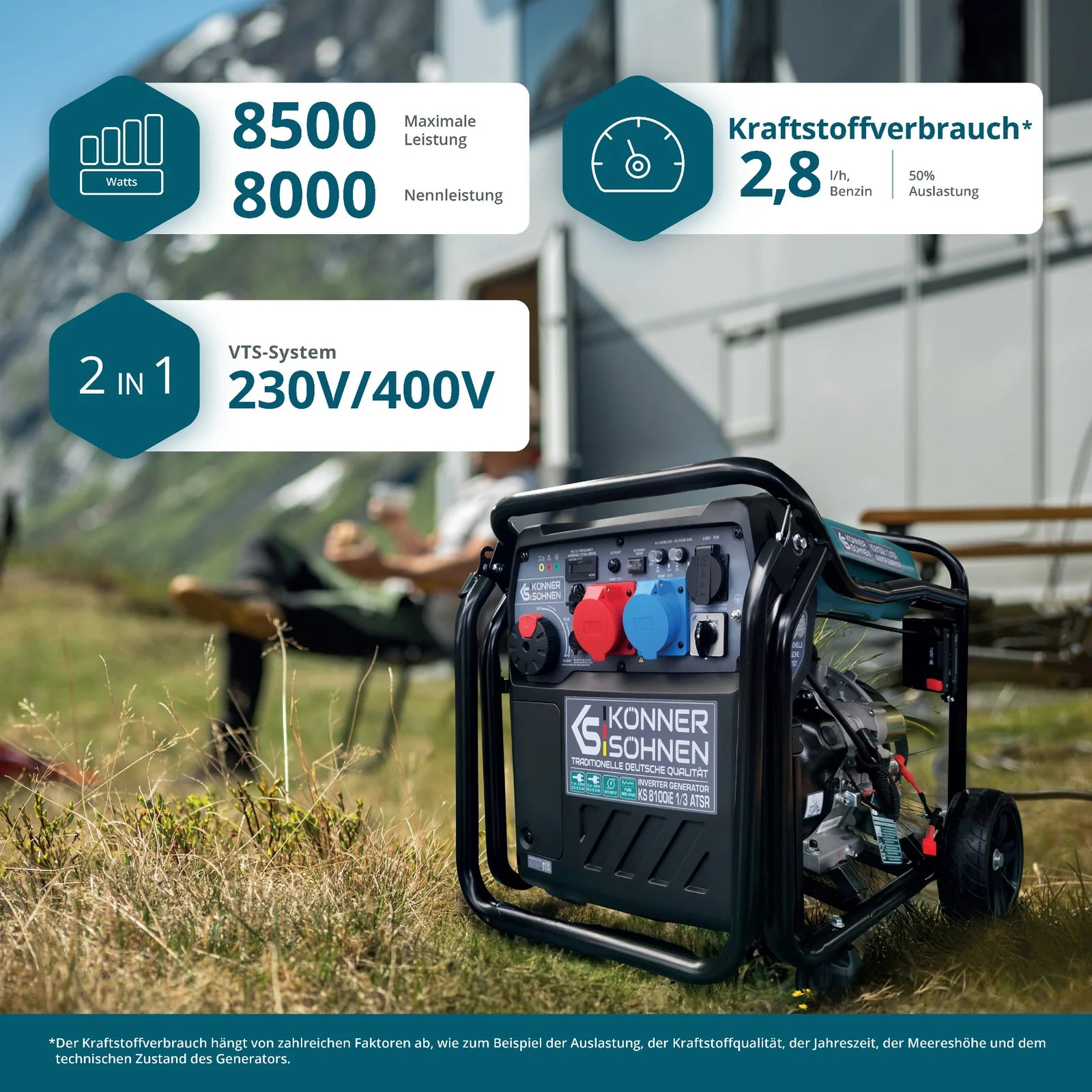

| Maximum power, kW | 8.5kW (230V)/8.5kW (400V) |
| Rated power, kW | 8.0kW (230V)/8.0kW (400V) |
| Frequency, Hz | 50 |
| Maximum current per phase line, A | 36.9A / 15.35A |

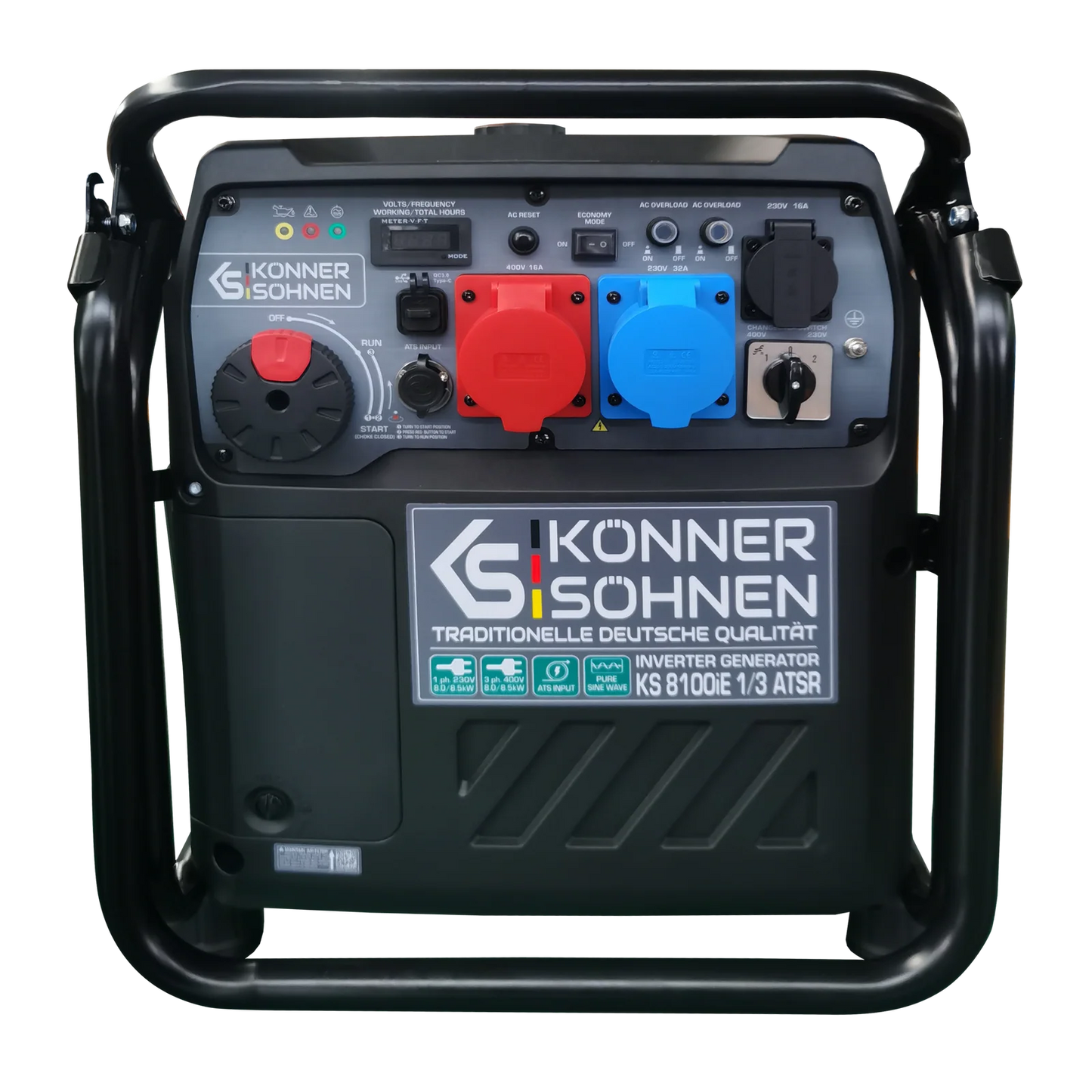

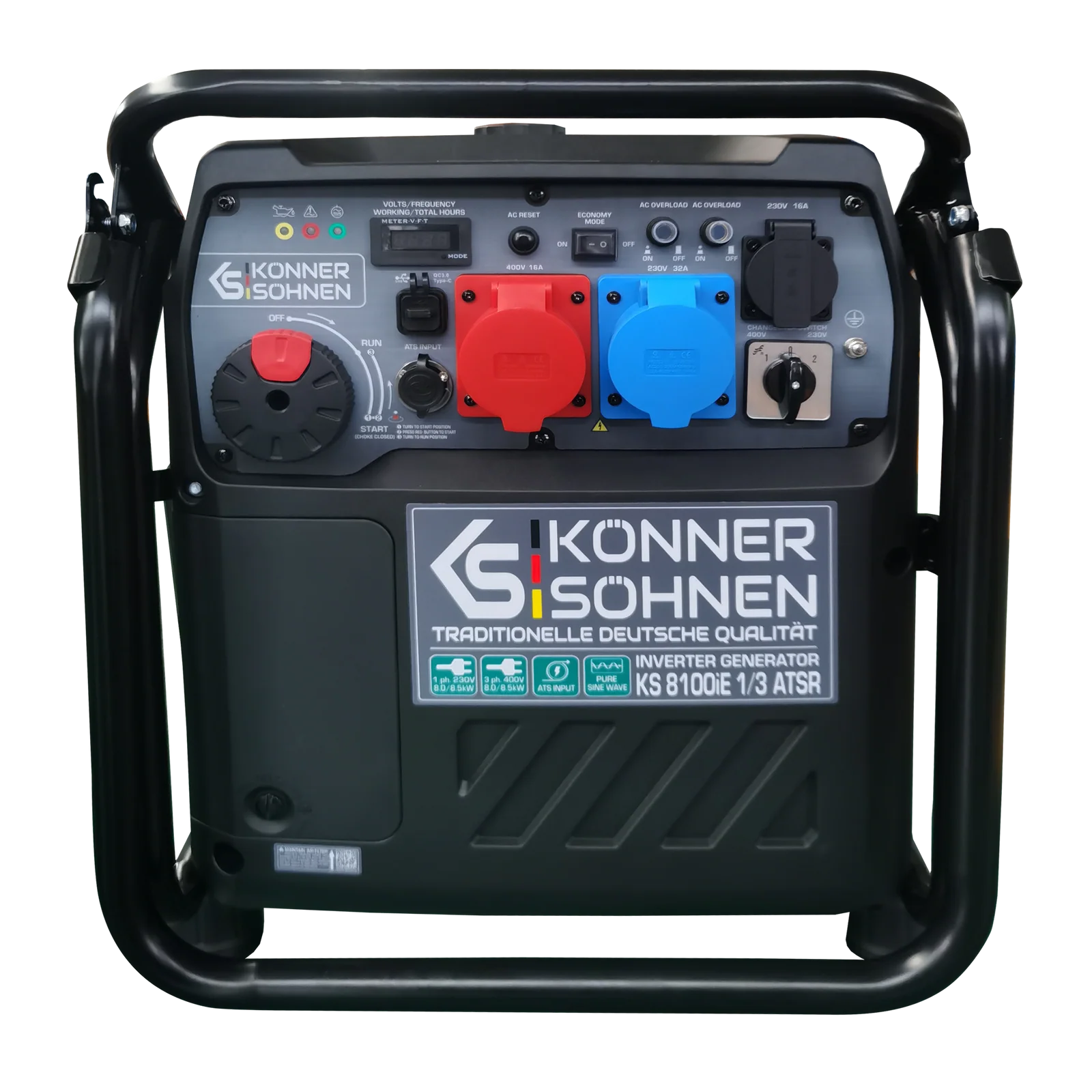

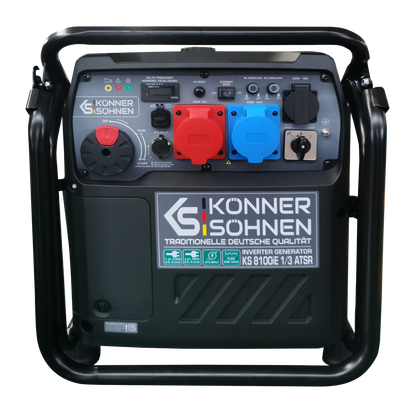

| electrical outlets | 1xSchuko 230V, 1xCEE 230V 32A, 1xCEE 400V 16A |
| starter | electric |
| Fuel tank volume, liters | 20 |
| Runtime at 50% load, h*** | 6 hours |
| LED display | Operating hours, frequency, voltage |
| Sound level Lpa (7m)/Lwa, dB | 70/97 |
| USB ports | USB 3.0 + Type-C |
| Engine model | KS 480i |
| Engine displacement, cm3 | 458 |
| Engine type | 4-stroke petrol engine |
| Engine power, hp | 16 |
| Engine oil capacity, liters | 1.1 |
| Battery, Ah | 1.6 |
| Protection class | IP23M |

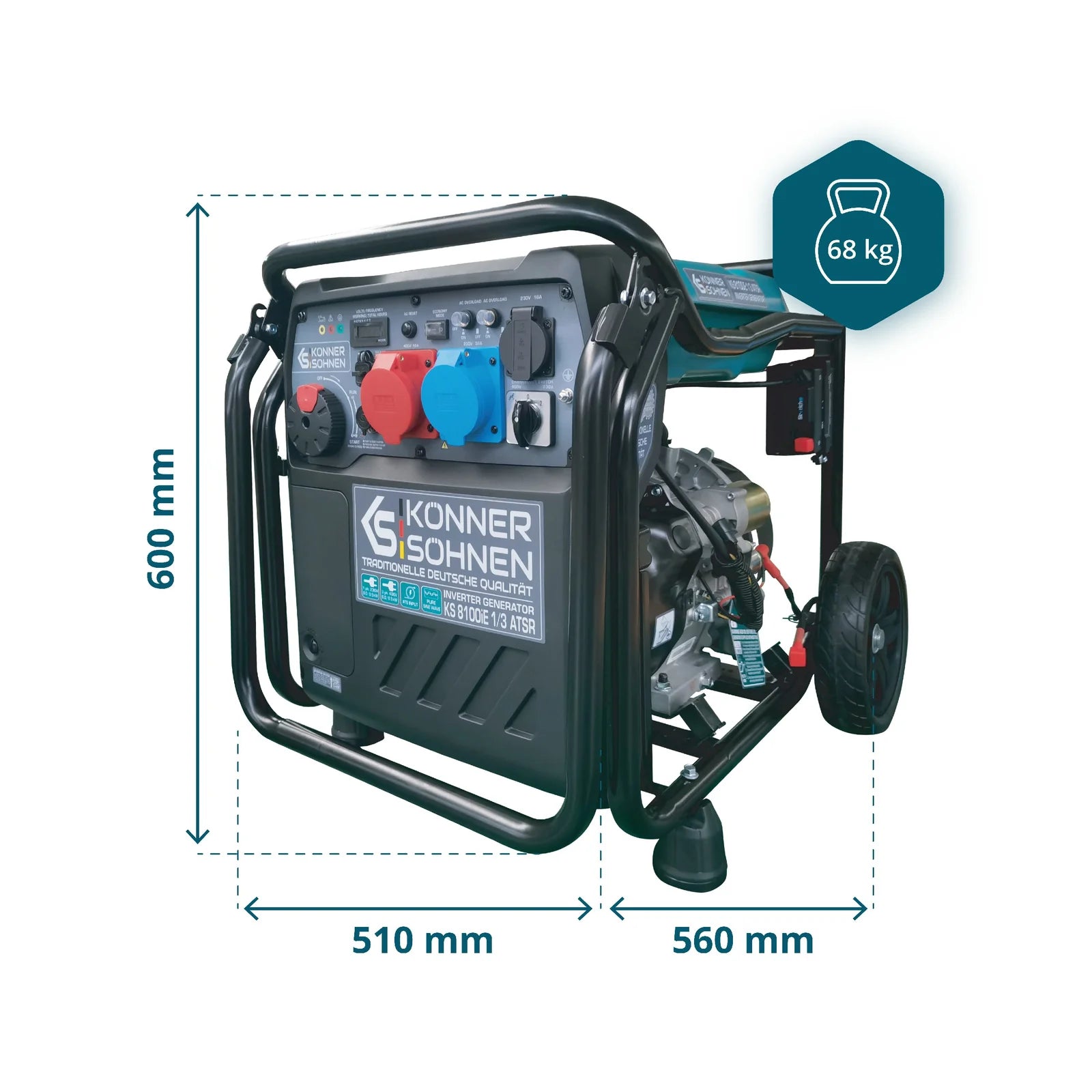

| Net dimensions (L x W x H), mm | 715×505×555 |
| Gross dimensions (L x W x H), mm | 730×520×580 |
| Net weight, kg | 68 |
| Gross weight, kg | 71.0 |
| SKU | KS 8100iE 1/3 ATSR |
| barcode | 4260405368365 |
Advantages:
© DIMAX International GmbH for image, sound & text material / Usage release granted to Elsässer company.
-----
General service information for Elsässer company:
Service is my top priority, and I am usually available as a contact person for advice and support, even on weekends.
The price includes delivery; there are no additional costs within a 25km radius of Kaiserslautern.
It might also be possible to combine it with my travel plans, please inquire explicitly, I am in the Rhine-Main area once a week.
I would also take care of disposing of your old device, and of course I would be happy to handle the commissioning for you if I deliver directly (without shipping).
For longer distances, I offer shipping; there is an additional charge (flat rate), see shipping costs under shipping conditions "very heavy materials".
