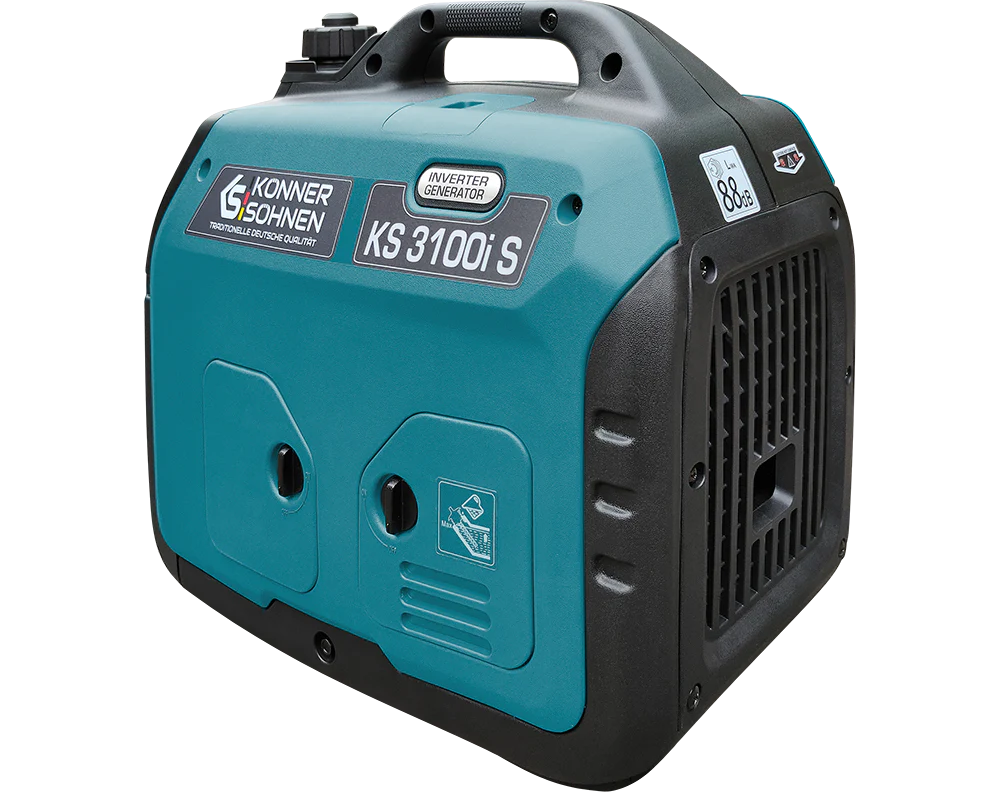

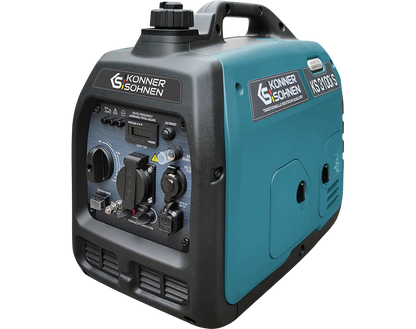

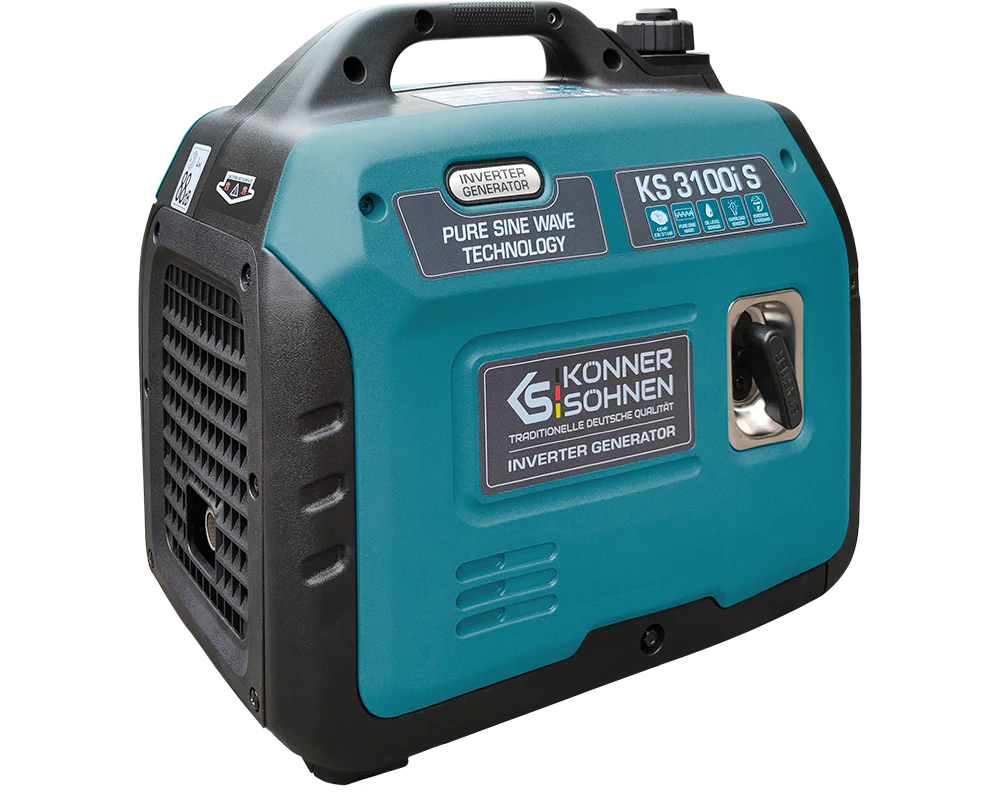

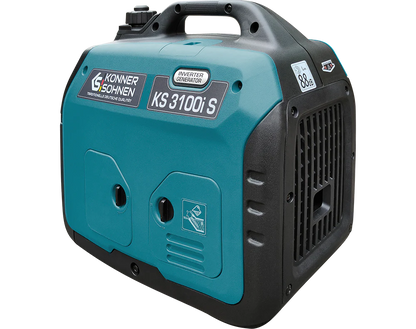

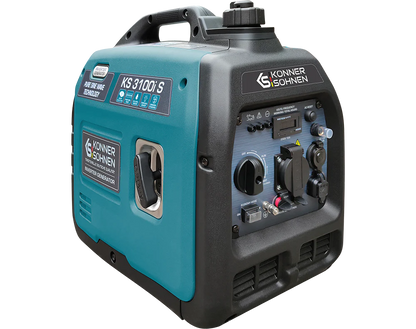

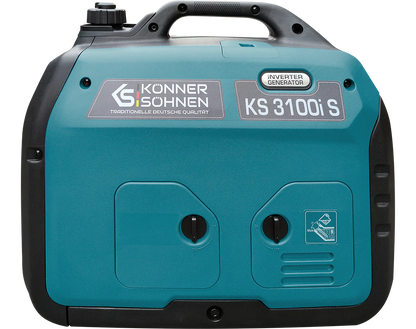

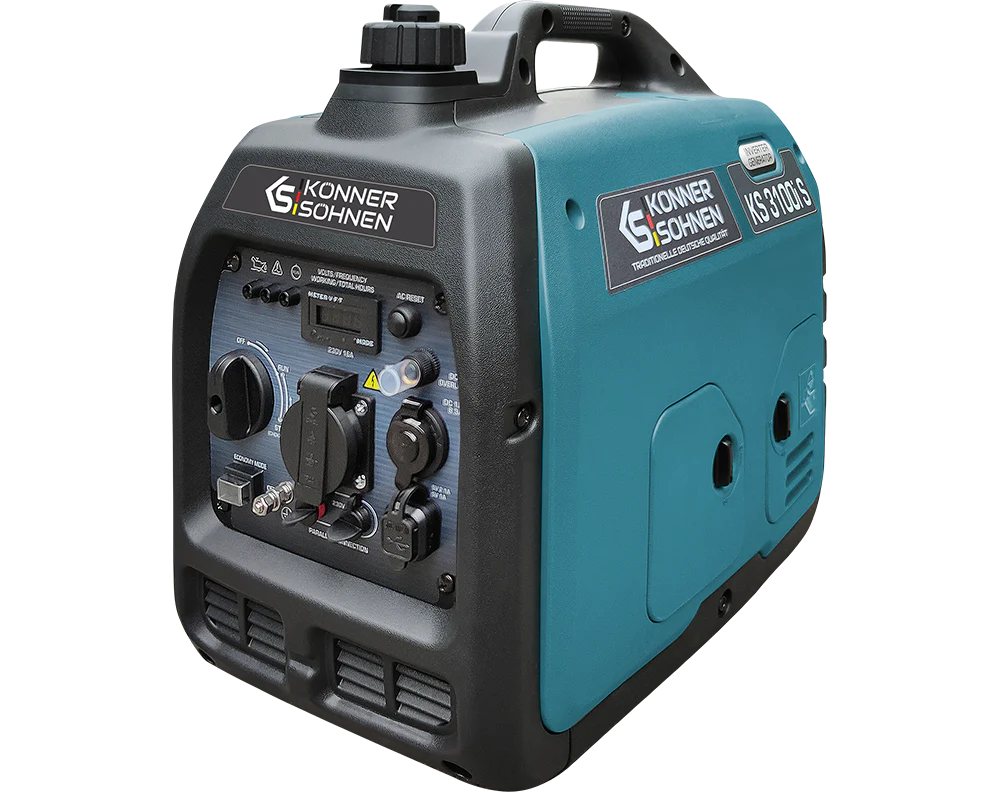

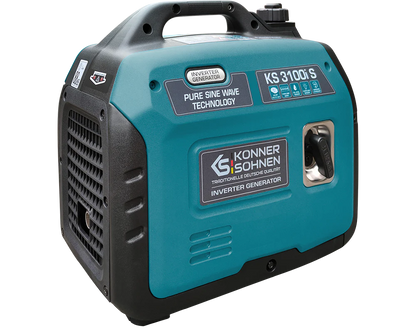

"Könner & Söhnen" Inverter Generator KS 3100i S - 2.8kW rated power - petrol engine - 230V
"Könner & Söhnen" Inverter Generator KS 3100i S - 2.8kW rated power - petrol engine - 230V
Couldn't load pickup availability
Product description:
Pure sine wave
Built-in inverter module with microprocessor control manages the generator's functions and produces a stable 230V 50Hz sine wave voltage, which is also suitable for sensitive electrical consumers.
Robust engine

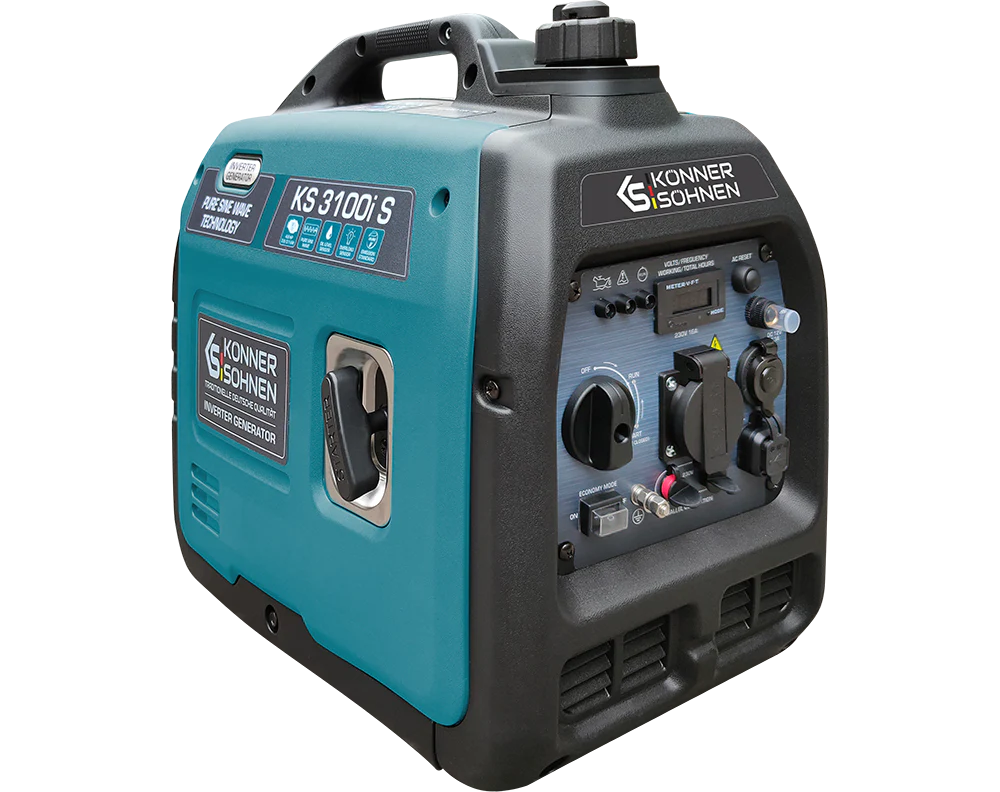

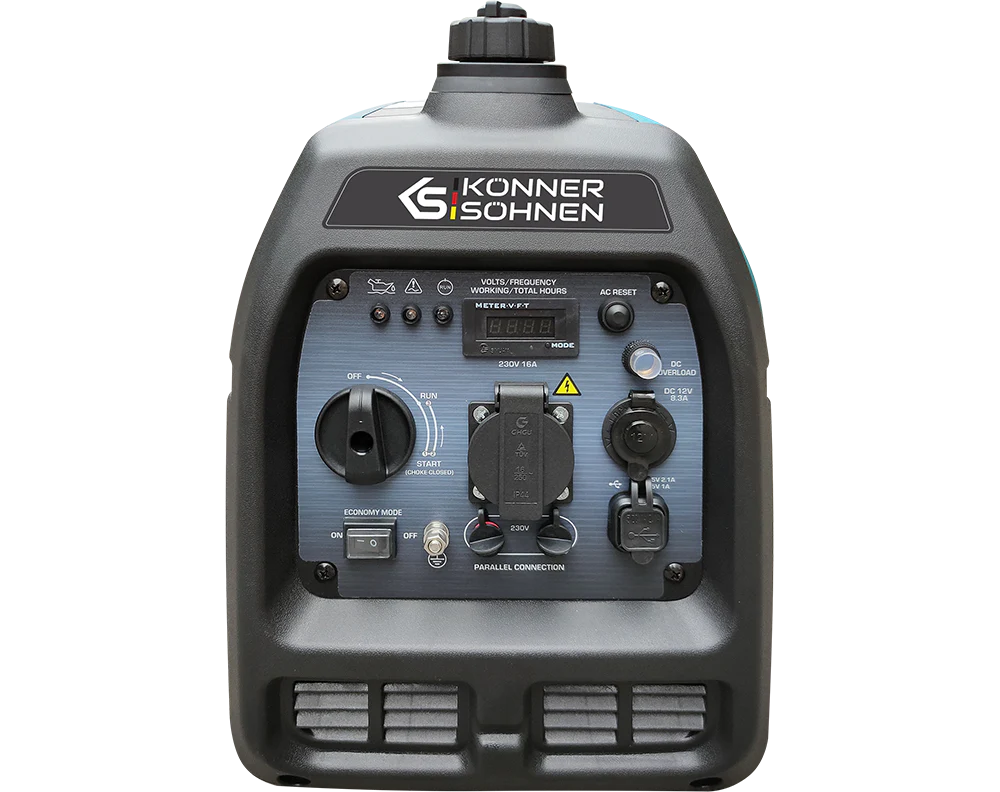

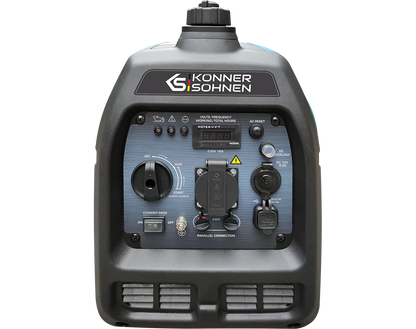

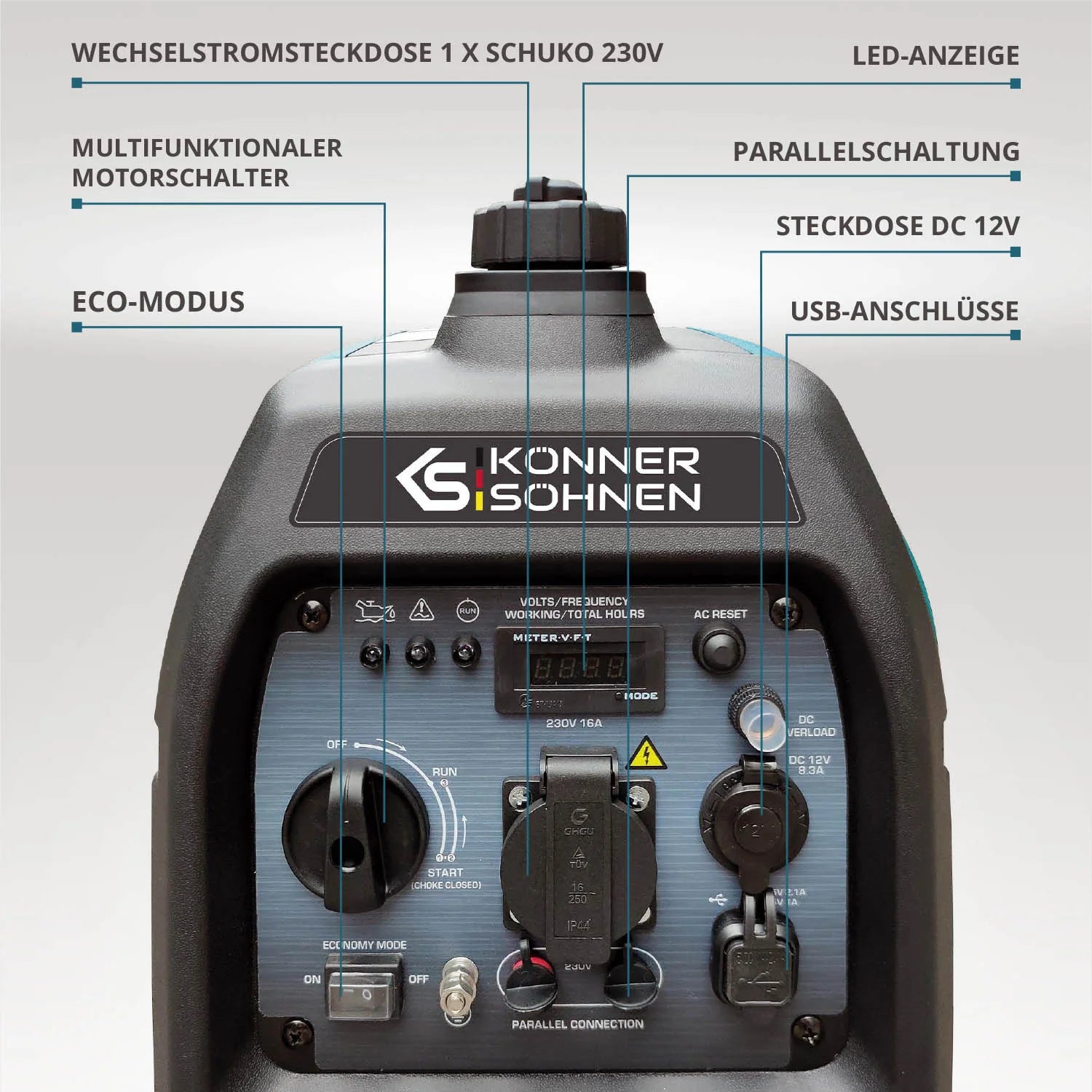

Ergonomic control panel
Reduced noise level

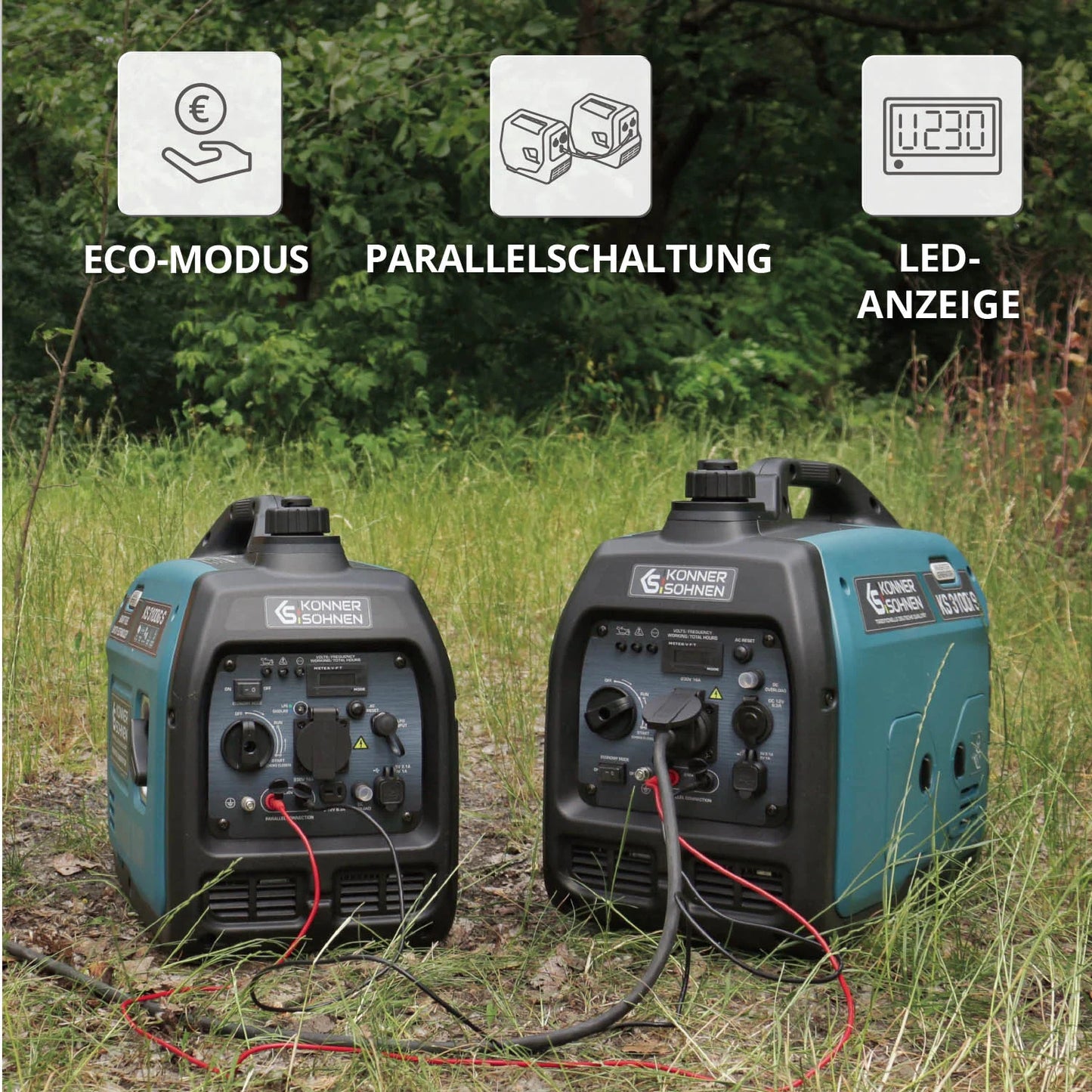

Parallel connection
Specification
| Operating voltage, V | 230 |
| Maximum power, kW | 3.1 |
| Rated power, kW | 2.8 |
| Power factor, cos φ | 1 |
| Frequency, Hz | 50 |
| Maximum current per phase, A | 13.5 |
| Sockets | 1 x Schuko 230 V |
| Starter | Manual |
| Fuel tank capacity, l | 4 |
| Runtime at 50% load, h*** | 2.7 |
| LED display | Voltage in volts, frequency, operating hours counter |
| Noise level Lpa (7m)/Lwa, dB | 63/96 |
| 12V socket, А | 12V/8.3A |
| USB ports | 5V/1A, 5V/2.1A |
| Engine model | KS 160i |
| Displacement, cm3 | 145 |
| Engine type | Gasoline 1-cylinder, 4-stroke, air-cooled |
| Engine power, hp | 4.6 |
| Parallel connection | + |
| Engine oil capacity, l | 0.45 |
| Alternator winding | Copper |
| Protection class | IP23M |

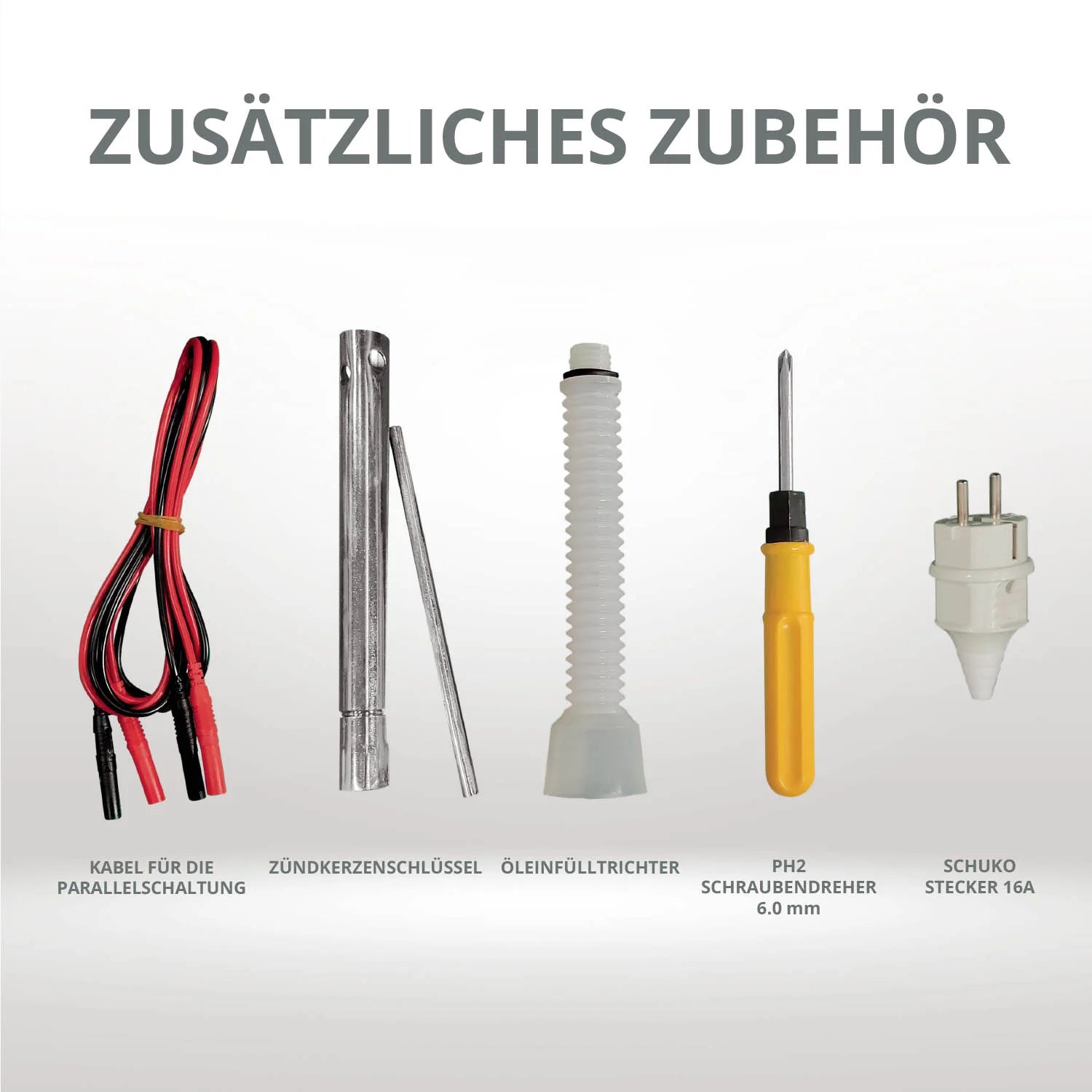

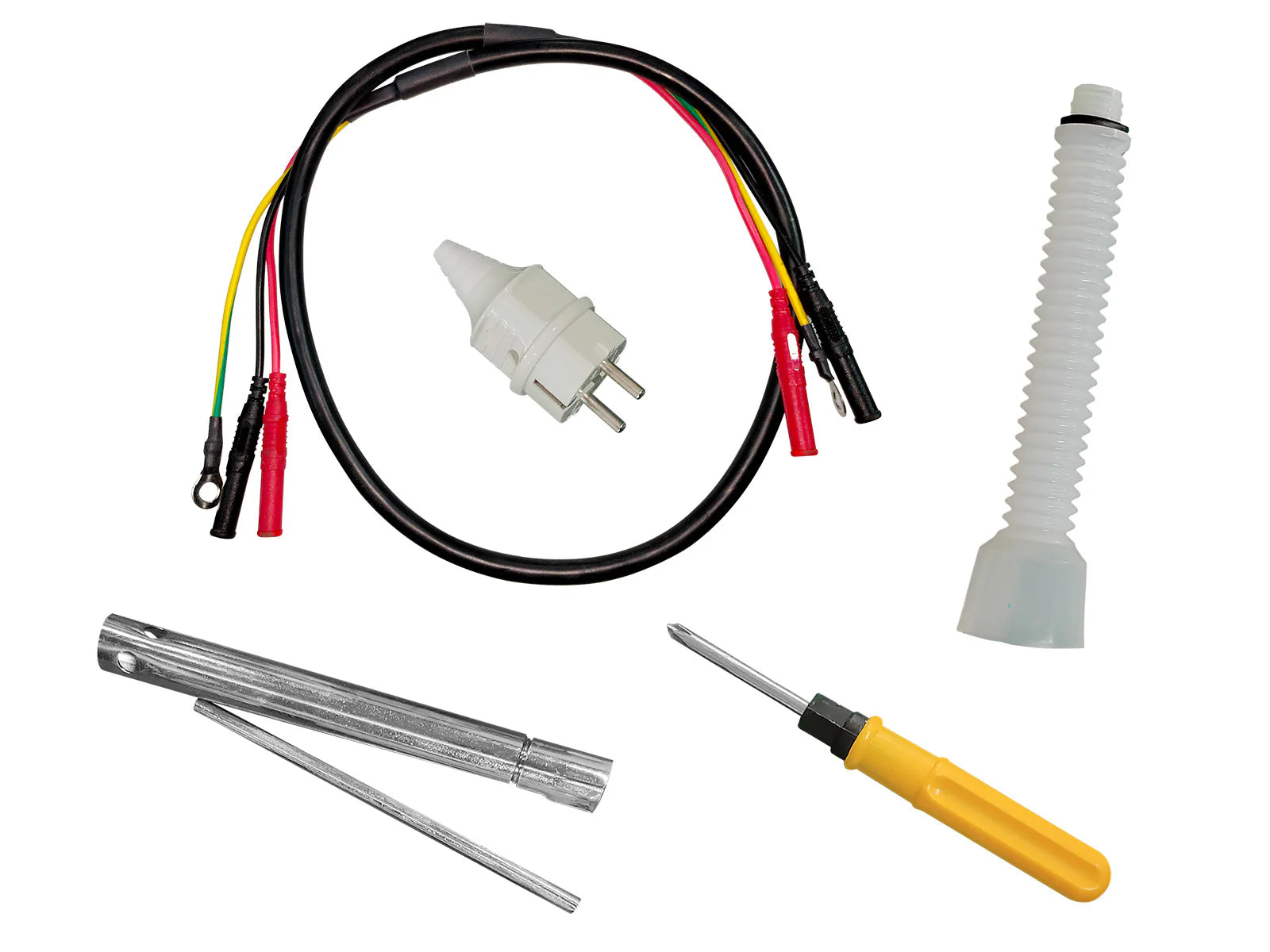

| Equipment | Generator, packaging, user manual, spark plug wrench, screwdriver PH2 6.0 mm, parallel connection cable, oil filling funnel, plug 16 A Schuko |

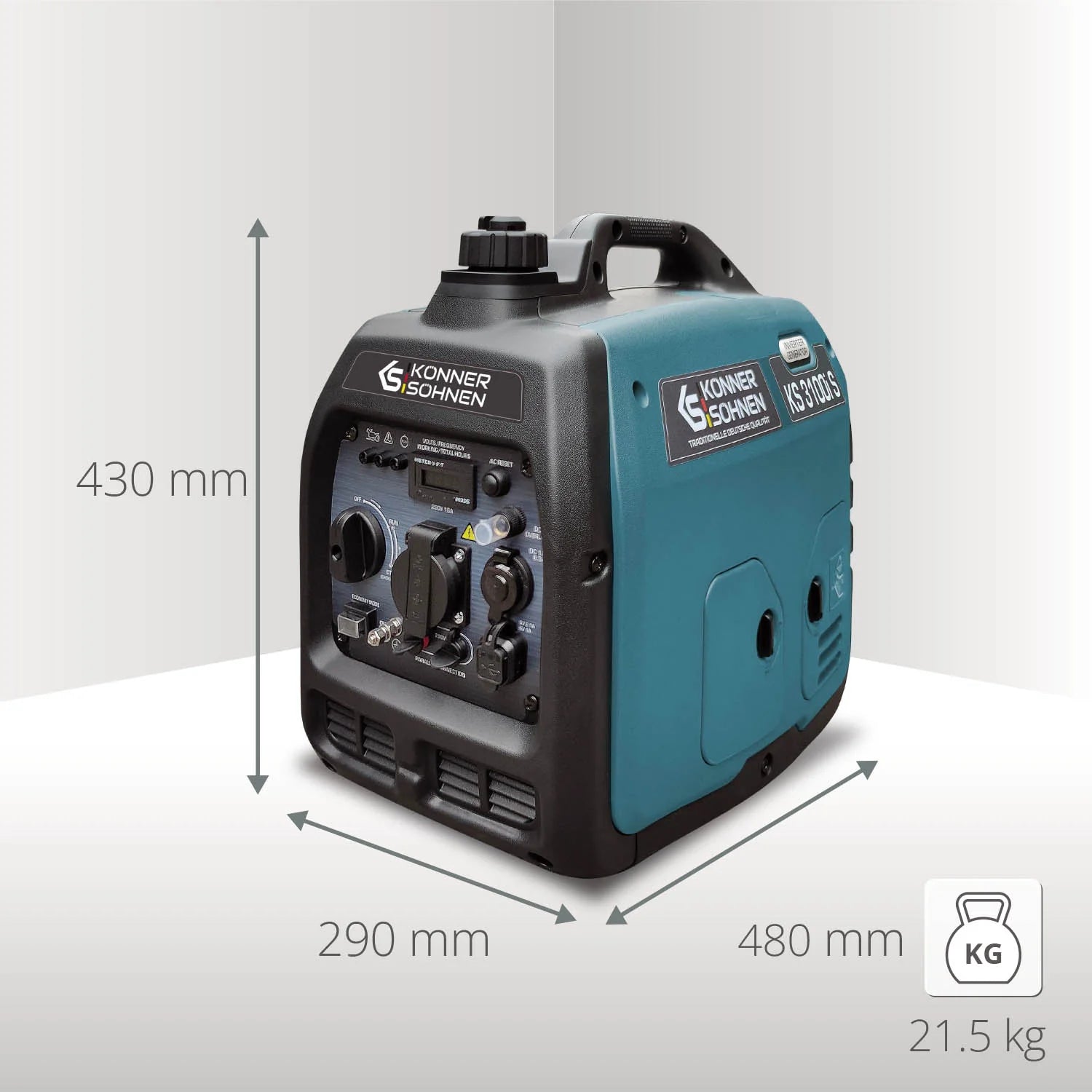

| Net dimensions (LxWxH), mm | 480x290x430 |
| Gross dimensions (LxWxH), mm | 510x320x475 |
| Net weight, kg | 21.5 |
| Gross weight, kg | 23.9 |
| SKU | KS 3100i S |
| Barcode | 4260405365555 |
Advantages
- Provides clean energy for your sensitive devices
- The economy mode switch allows you to efficiently manage fuel consumption at low loads.
- High thermal resistance: copper windings withstand high temperatures, preventing overheating and damage to the generator.
- The practical portability makes the generator an ideal companion for outdoor adventures.

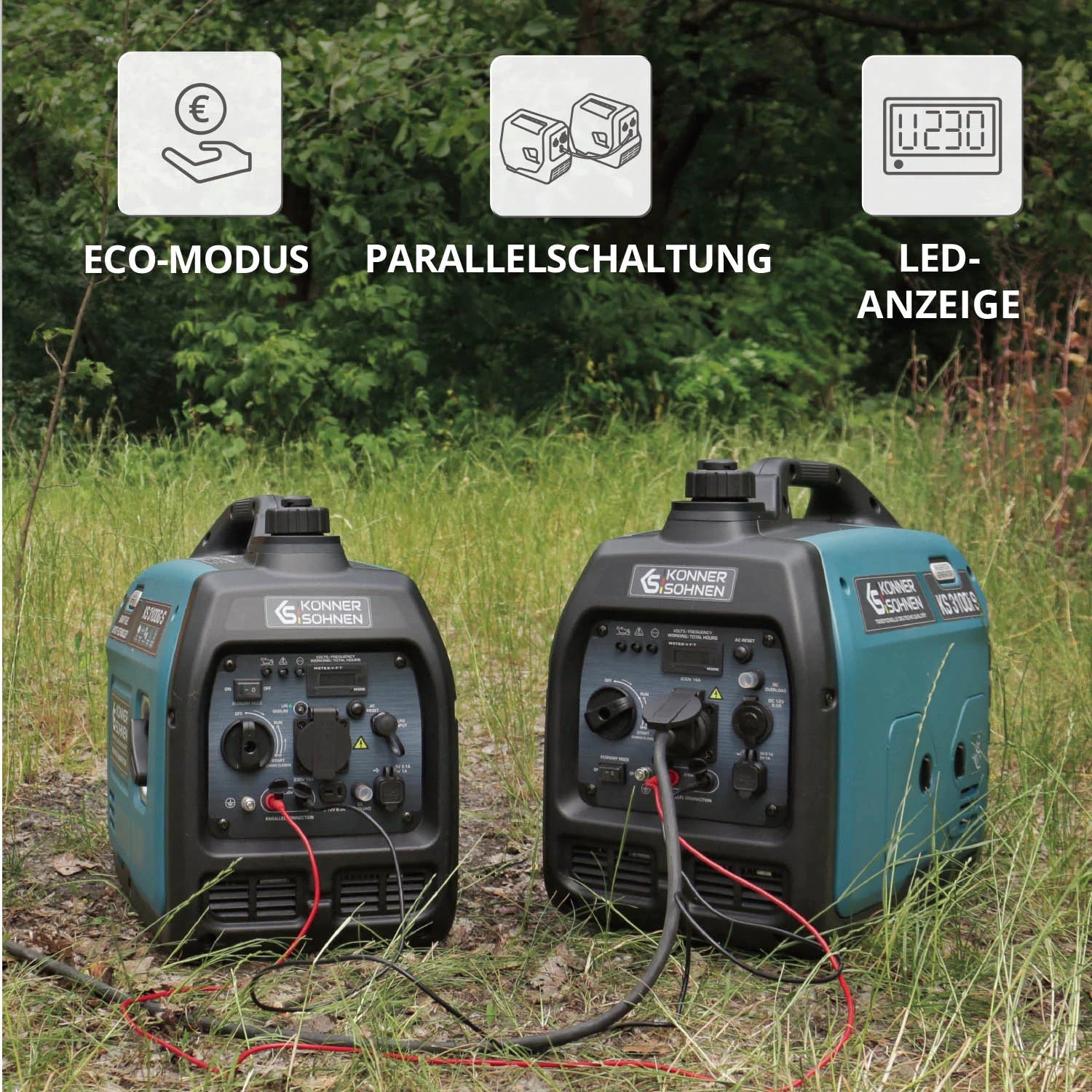

- The parallel connection function allows you to increase total power by connecting multiple generators together.
