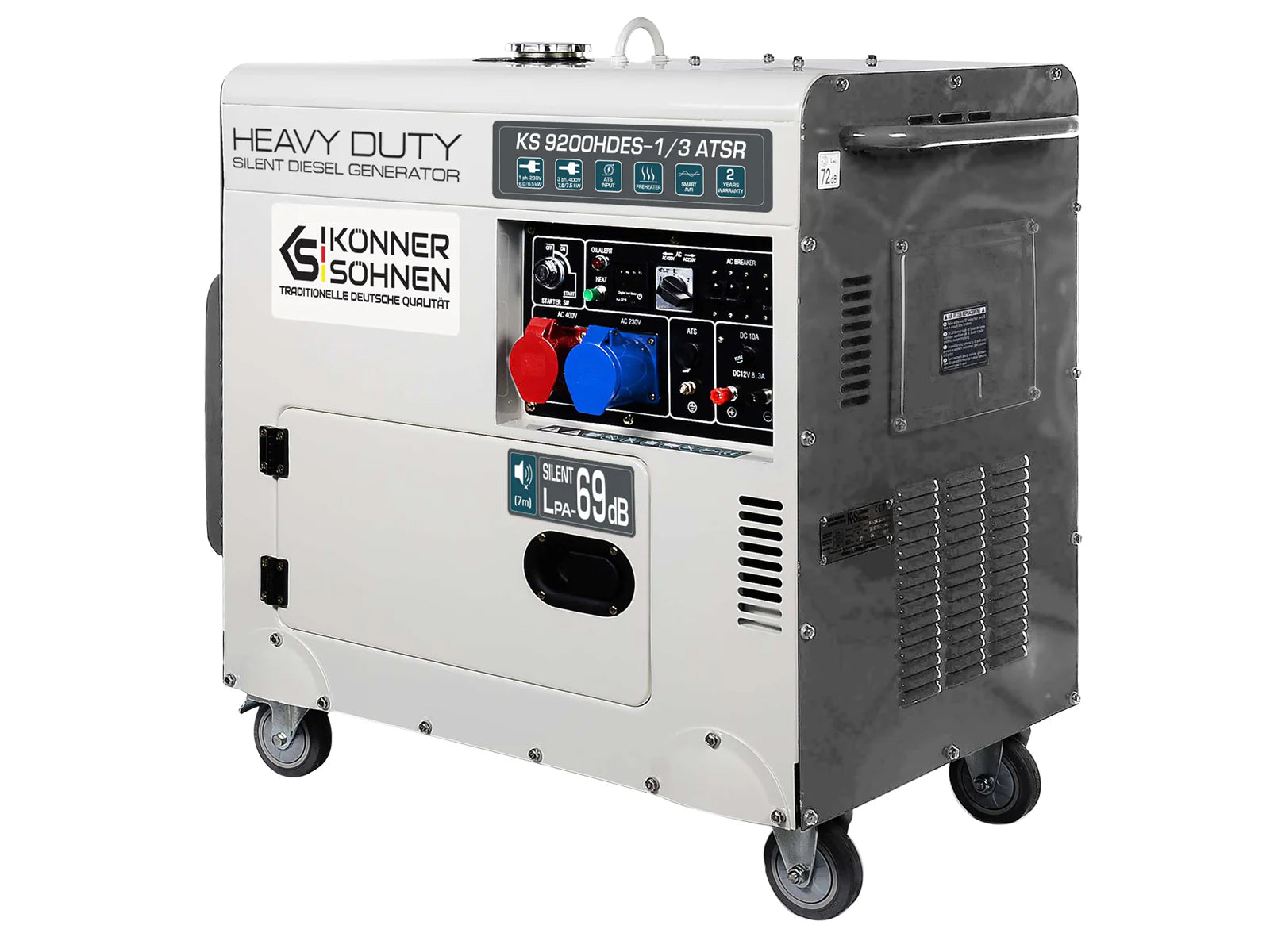

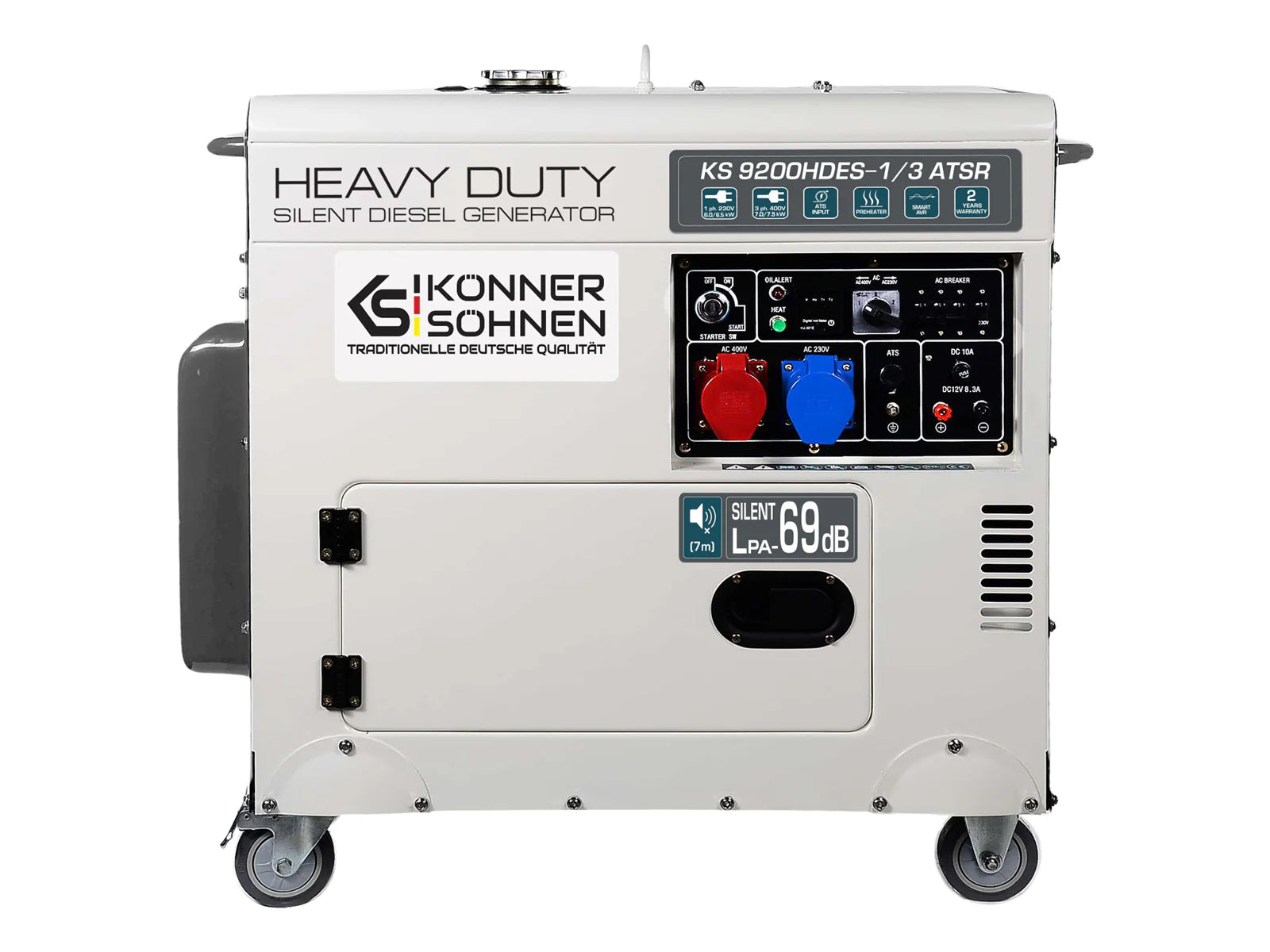

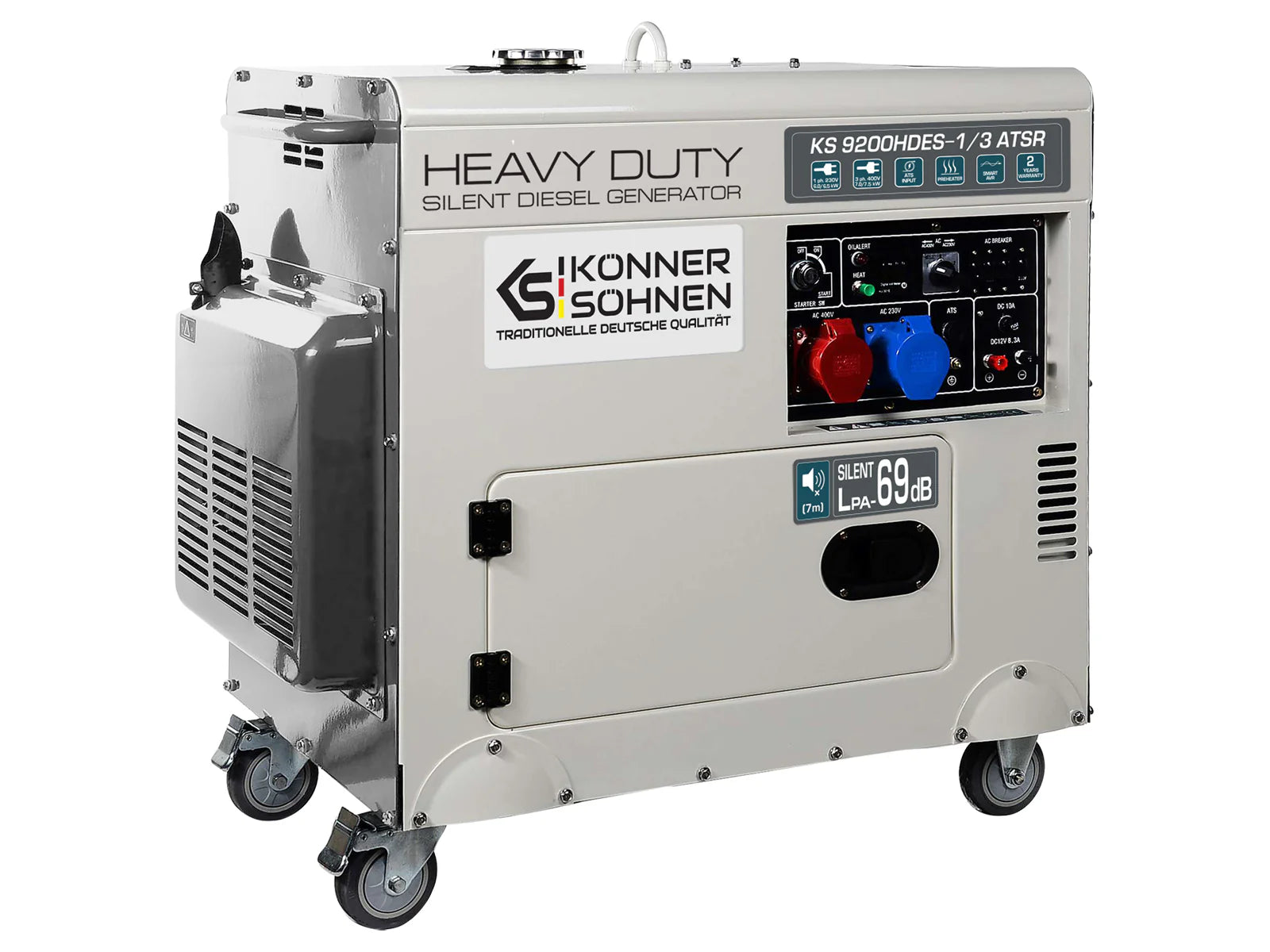

"Könner & Söhnen" Generator KS 9200HDES-1/3 ATSR (EURO V) - 6/7kVA Rated Power - Diesel Engine - 230/400V

Name: "Könner & Söhnen" Generator KS 9200HDES-1/3 ATSR (EURO V) - 6/7kVA Rated Power - Diesel Engine - 230/400V
Brand: DIMAX International GmbH
SKU: DIMAX International GmbH
Price: 1760.00 EUR
Availability: InStock

€1.760,00

~~€1.999,00~~ €1.760,00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Product description:

VTS System

2-in-1 universal generators feature a unique VTS (Voltage Transfer Switch) phase switching system, which allows the use of a generator in both single-phase (230 V) and three-phase (400 V) mode with almost no power loss. Each mode has its own circuit breakers. It is not necessary to buy two separate generators for single-phase and three-phase consumers.

ATS terminal

The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers the load when the main power supply is disconnected, and automatically stops the generator as soon as the main power supply is restored.

High-performance engine

Just like for petrol generators, engines for diesel generators are manufactured under license from DIMAX Int. and bear their own brand and logo. For all models, the engine's power reserve compared to the alternator allows for generating the specified voltage and keeping it stable across the entire voltage range. All engines are tested for long continuous operation and then dismantled and inspected for faults. Each engine and generator has an individual serial number. This allows us to monitor production and service quality. The engines meet all global and European standards for quality and efficiency.

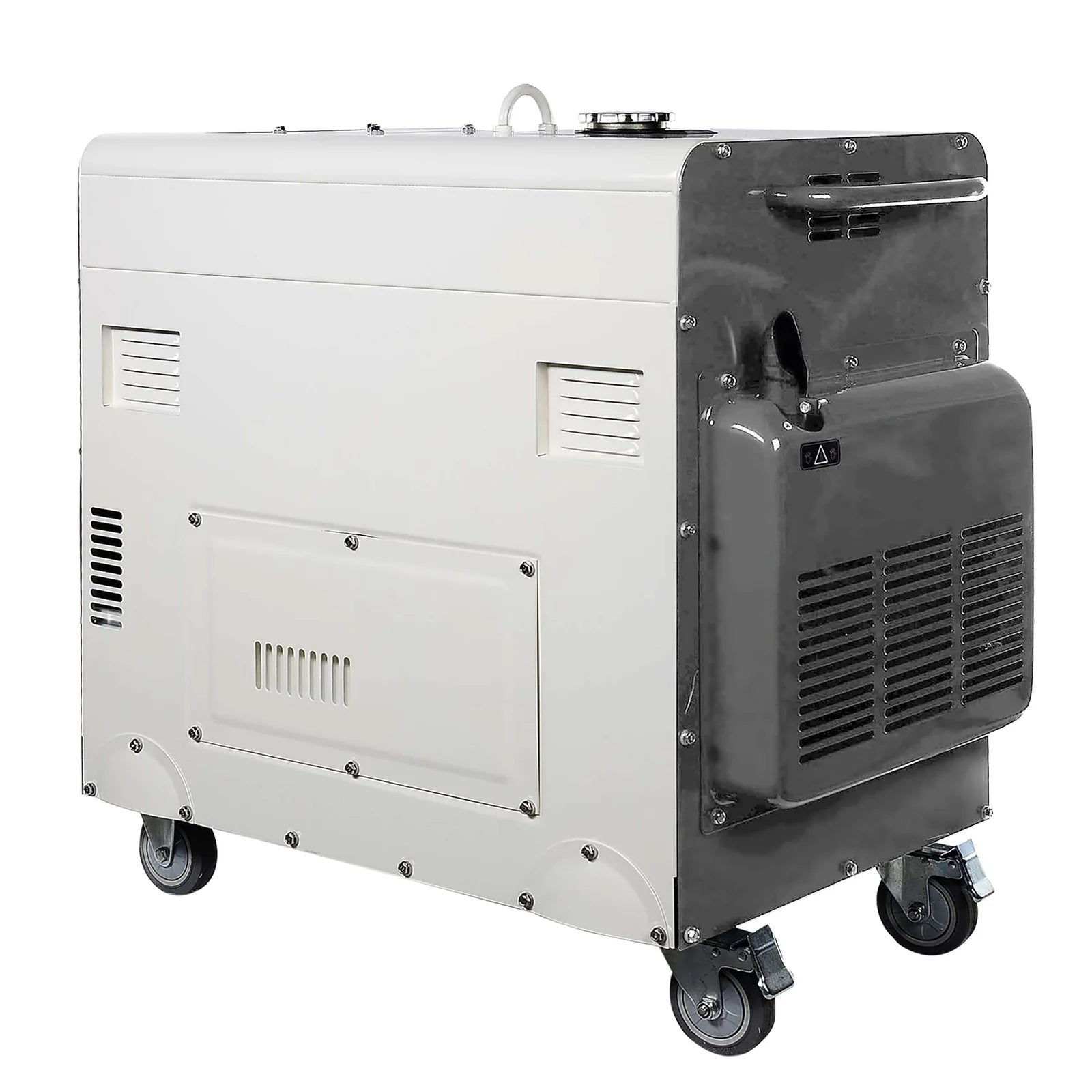

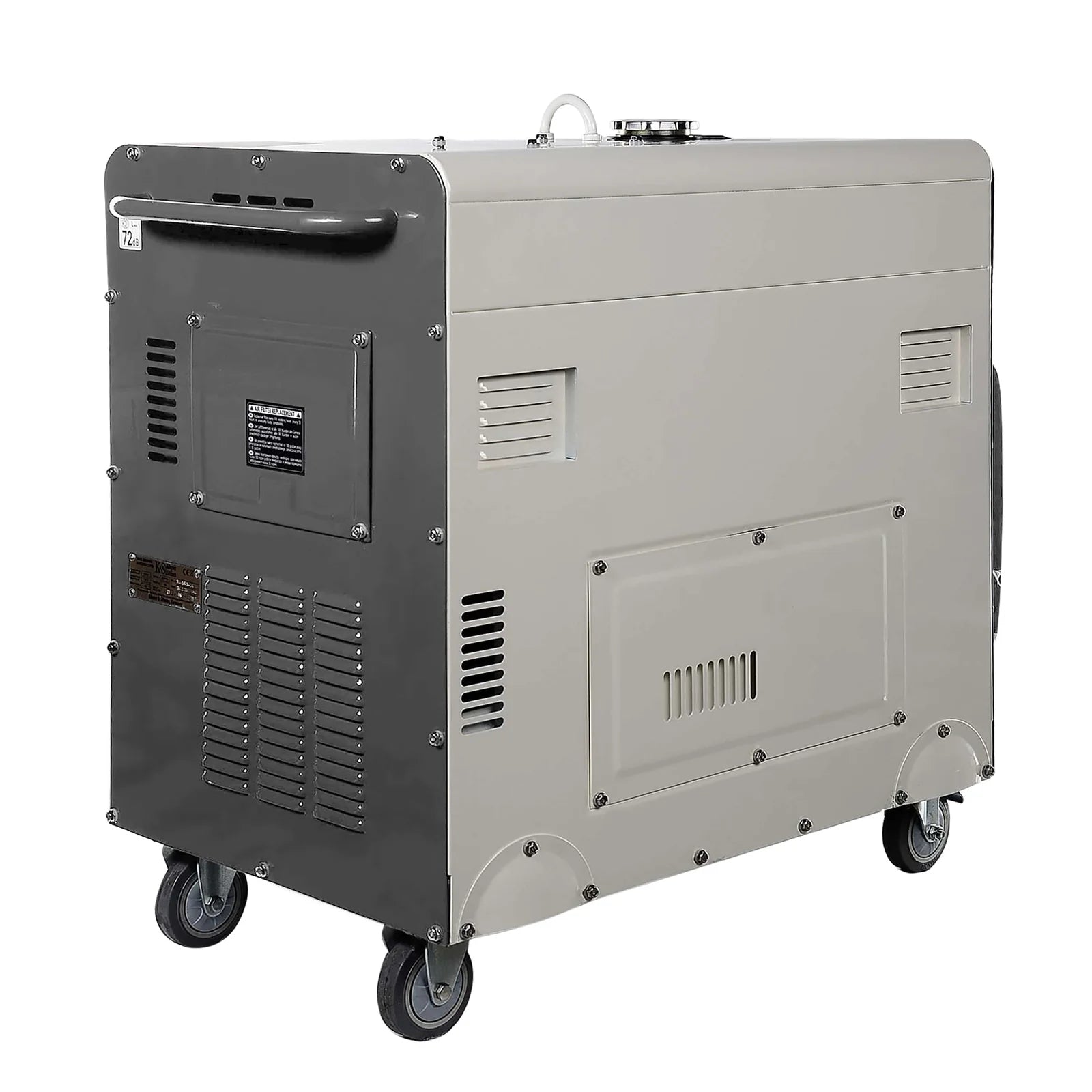

Soundproof, anti-vandal housing

The soundproof, anti-vandal housing effectively protects the generator in any season and extends its service life. The housing is equipped with handles and wheels for easy handling.

Specification

Operating voltage, V	230/400
Max. power/Rated power (230V), kW	6.5/6.0
Max. power/Rated power (400V), kW	7.5/7.0
Power factor, cos φ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230V/400V, A	28.26/13.54
Sockets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Running time at 50% load, h***	11.1
LED display	Voltage in volts, frequency, running hours meter
Noise level Lpa (7m)/Lwa, dB	69/94
12V socket, A	12/8.3
Engine type	Diesel 1-cylinder, 4-stroke with air cooling
Engine model	KS 520HD-V
Engine power, hp/kW	18.0/13.24
Preheating function	+
Fuel tank volume, l	20
Engine oil capacity, l	1.65
Displacement, cm3	498
Voltage regulator	Intelligent AVR system
Starter	Electric
ATS terminal	+
Protection class	IP23M
Net dimensions (LxWxH), mm	900x545x905
Gross dimensions (LxWxH), mm	960x570x985
Net weight, kg	168
Gross weight, kg	178.0
SKU	KS 9200HDES-1/3 ATSR
Barcode	4260405362363

Advantages

The unique serial number on the engine ensures that you receive an original product with guaranteed quality.
The VTS system makes the generator versatile for both domestic and industrial electrical appliances.
Compliance with European standards, including the modern EURO V environmental standard, minimizes environmental impact.
The anti-vandalism cover makes it difficult to steal the generator.
It is possible to connect an ATS (Automatic Transfer Switch) system.
