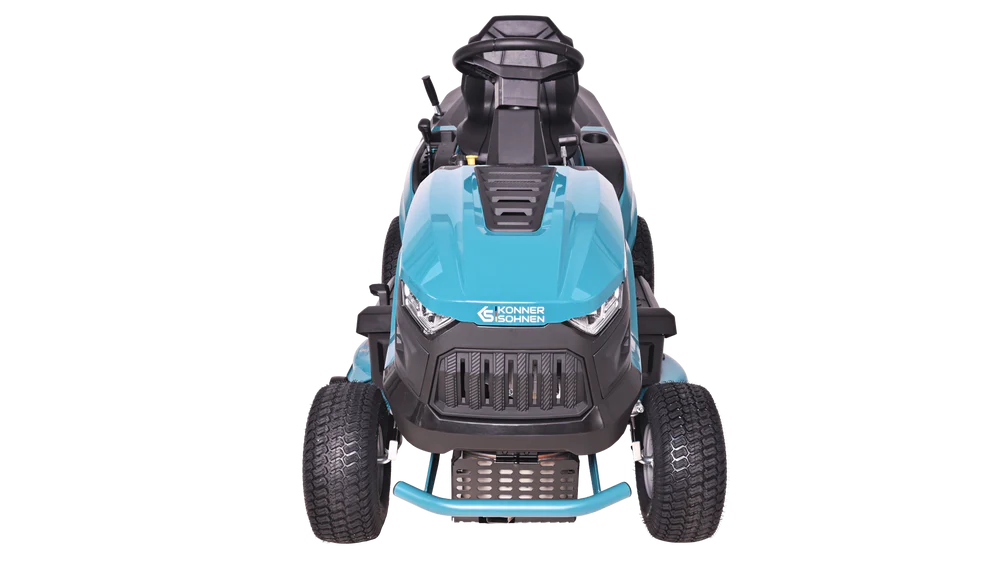

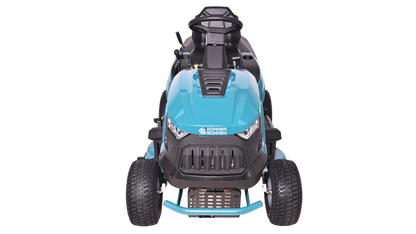

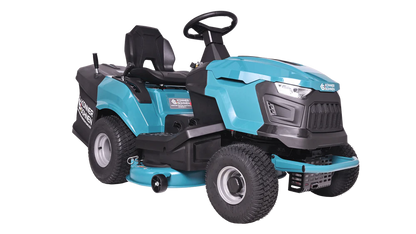

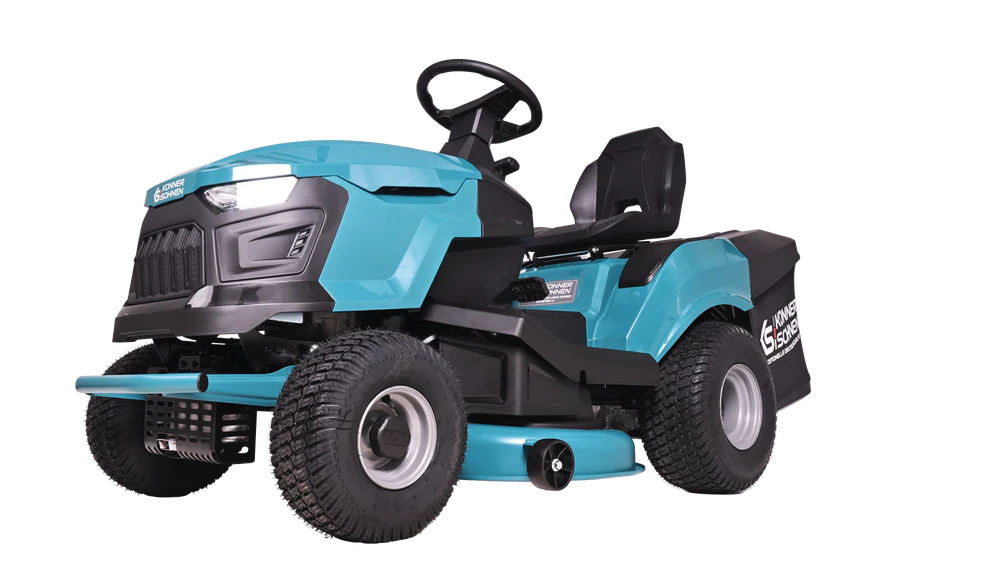

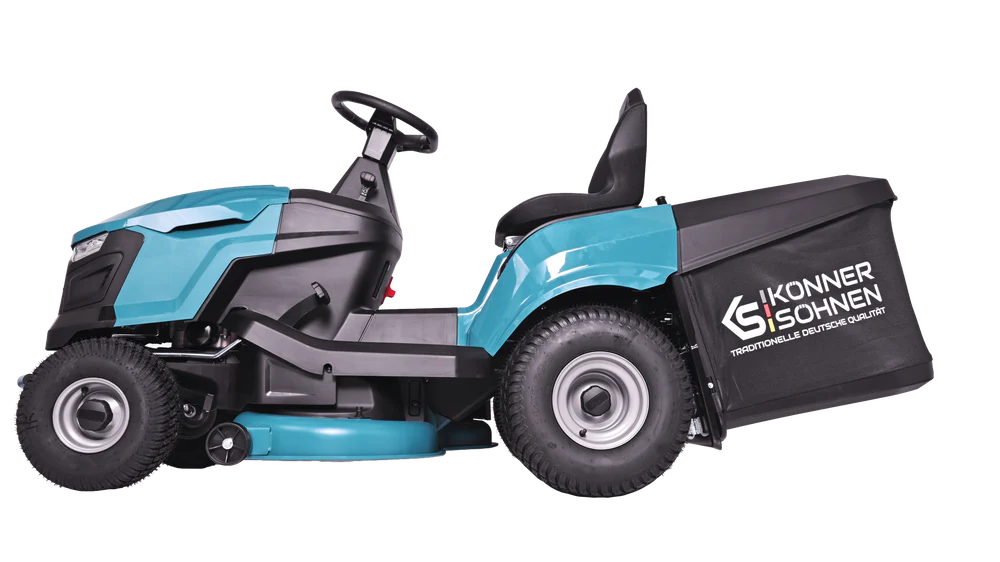

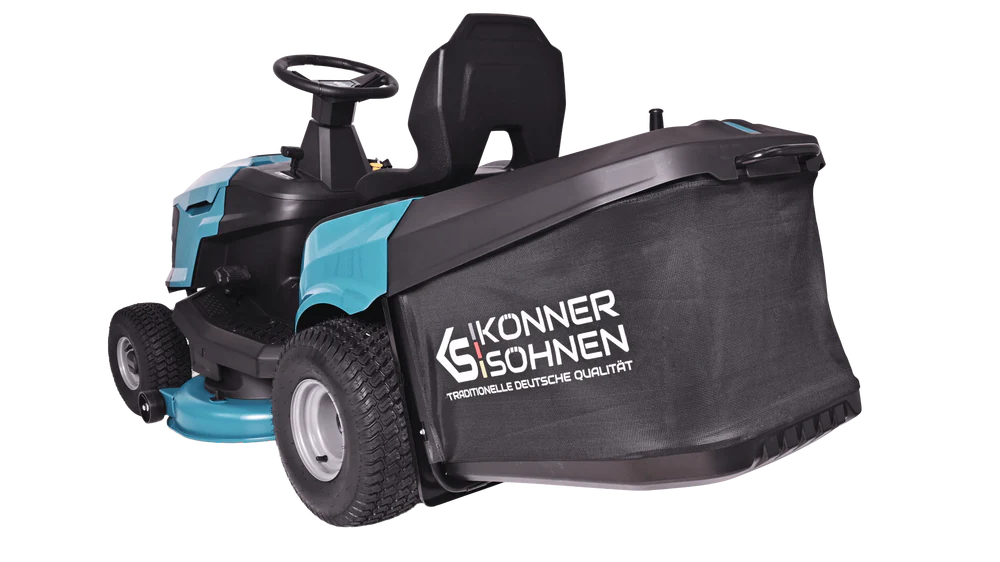

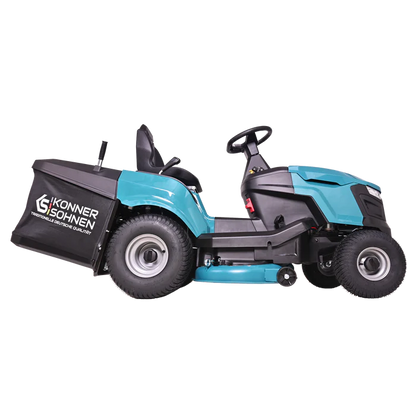

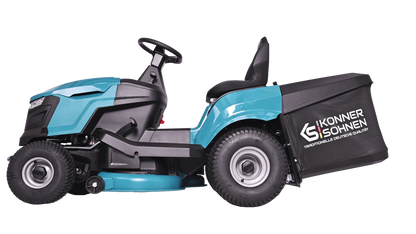

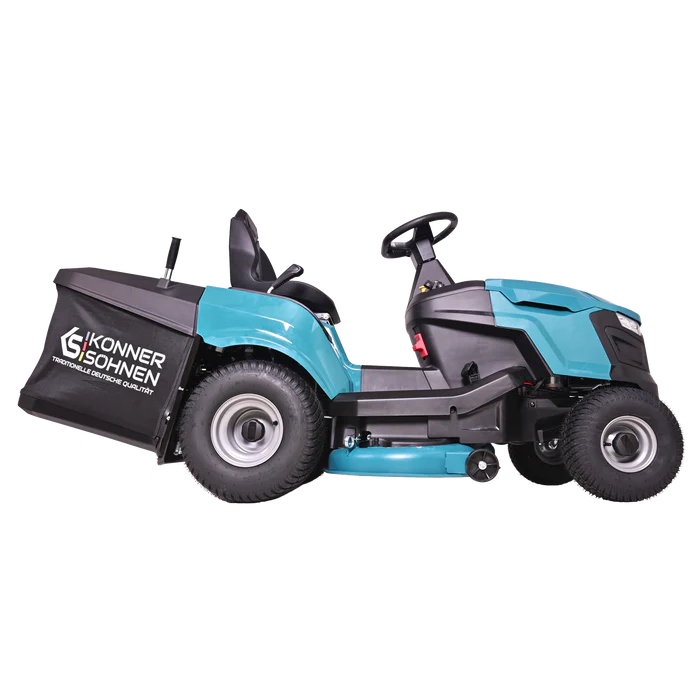

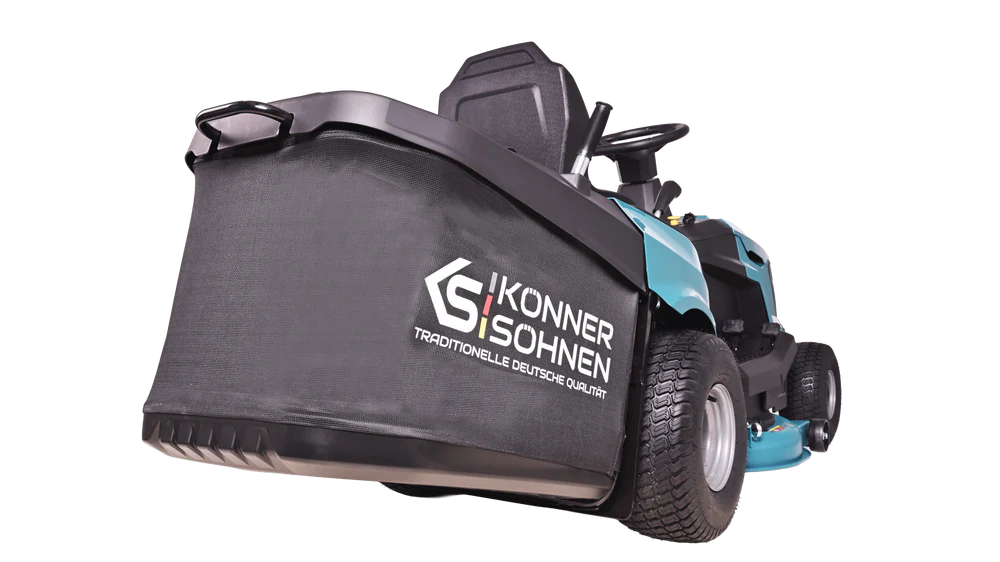

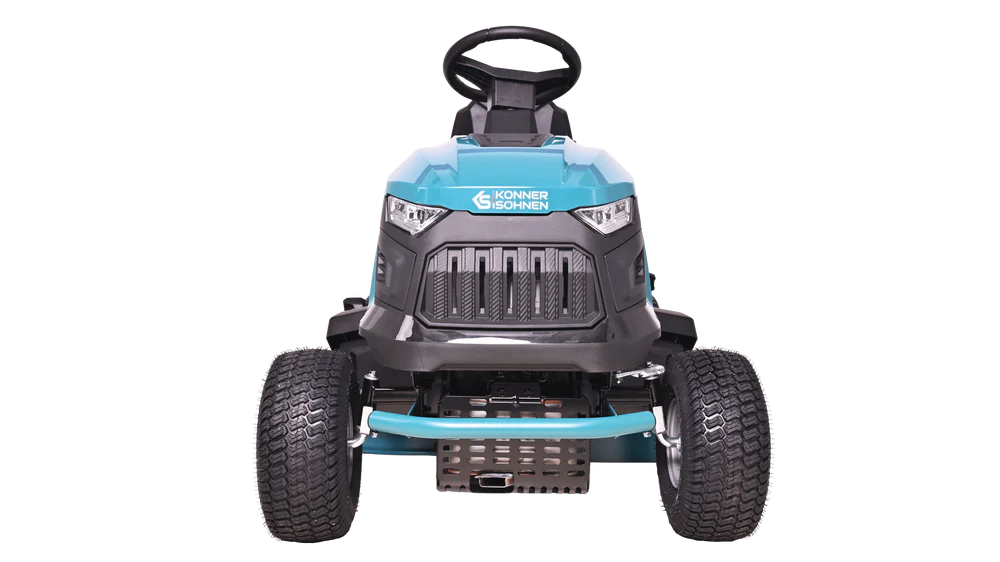

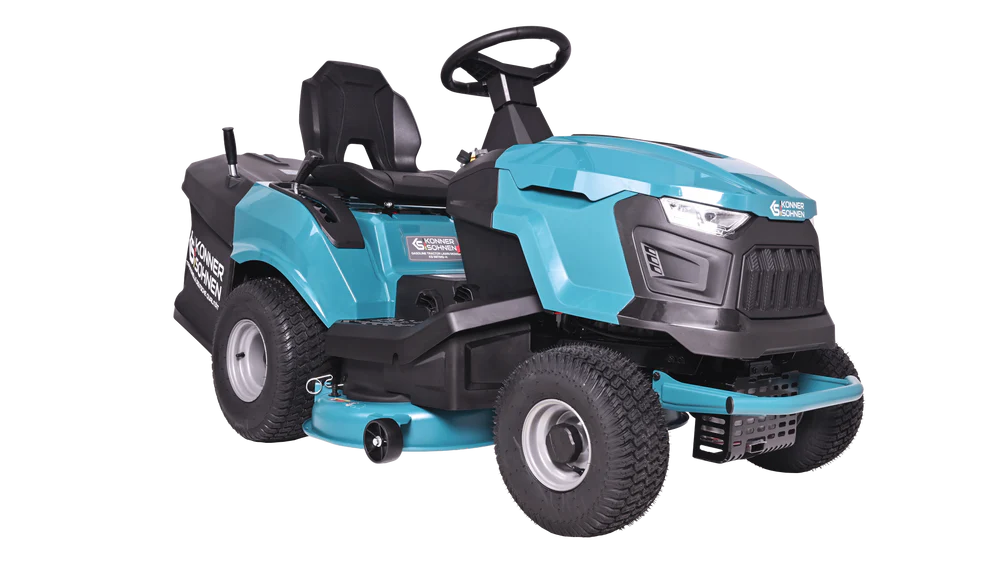

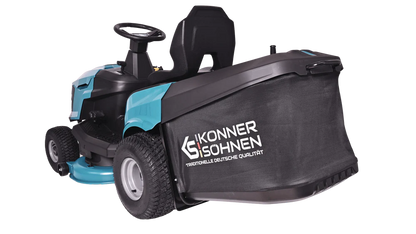

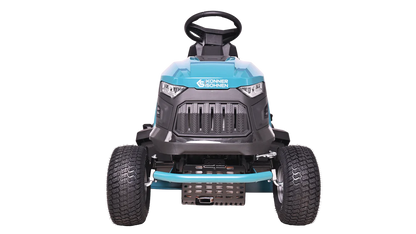

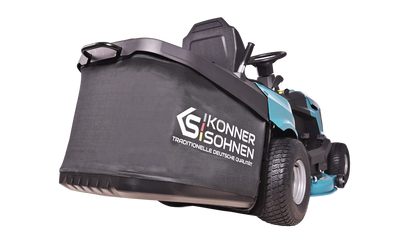

"Könner & Söhnen" Petrol Lawn Tractor KS 98TMG-H

Product description:

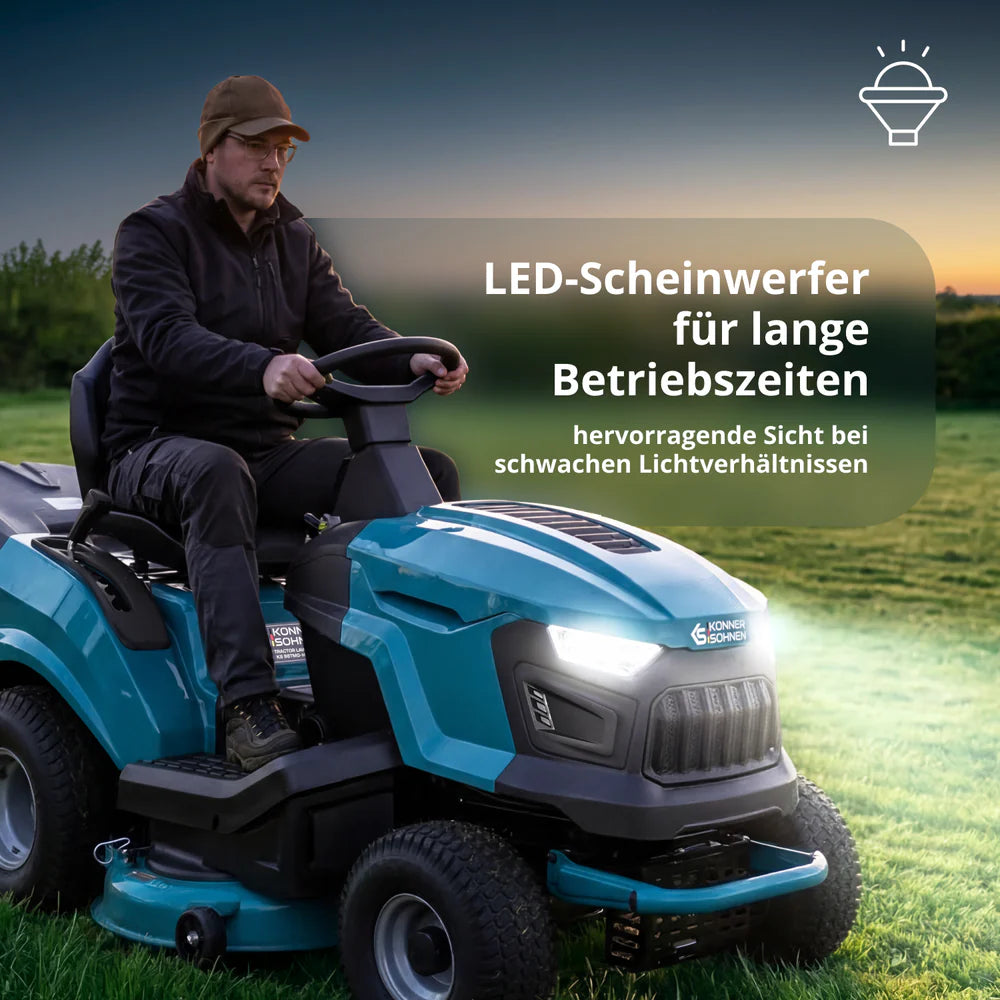

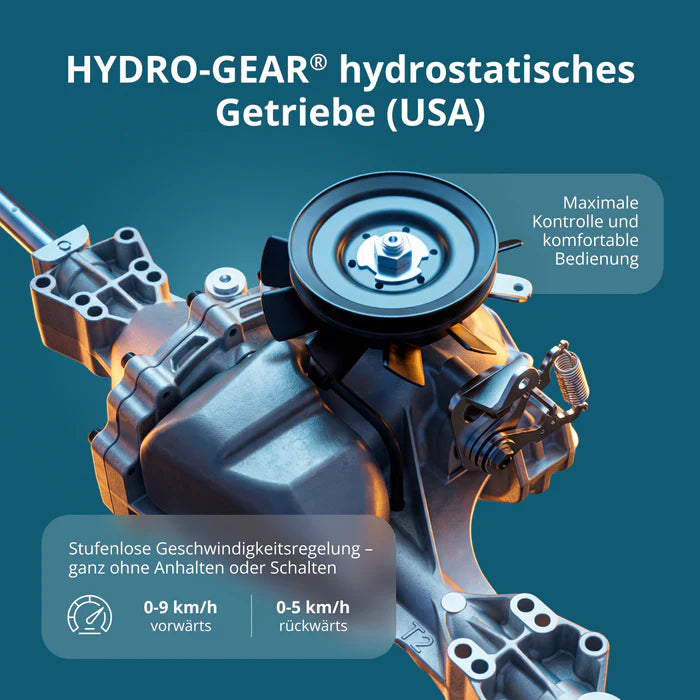

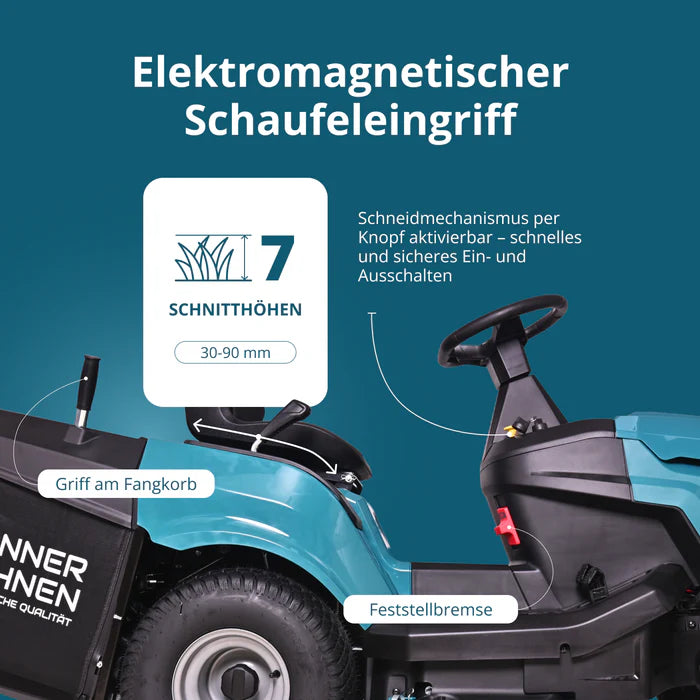

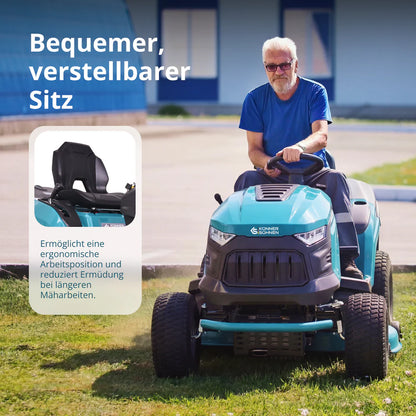

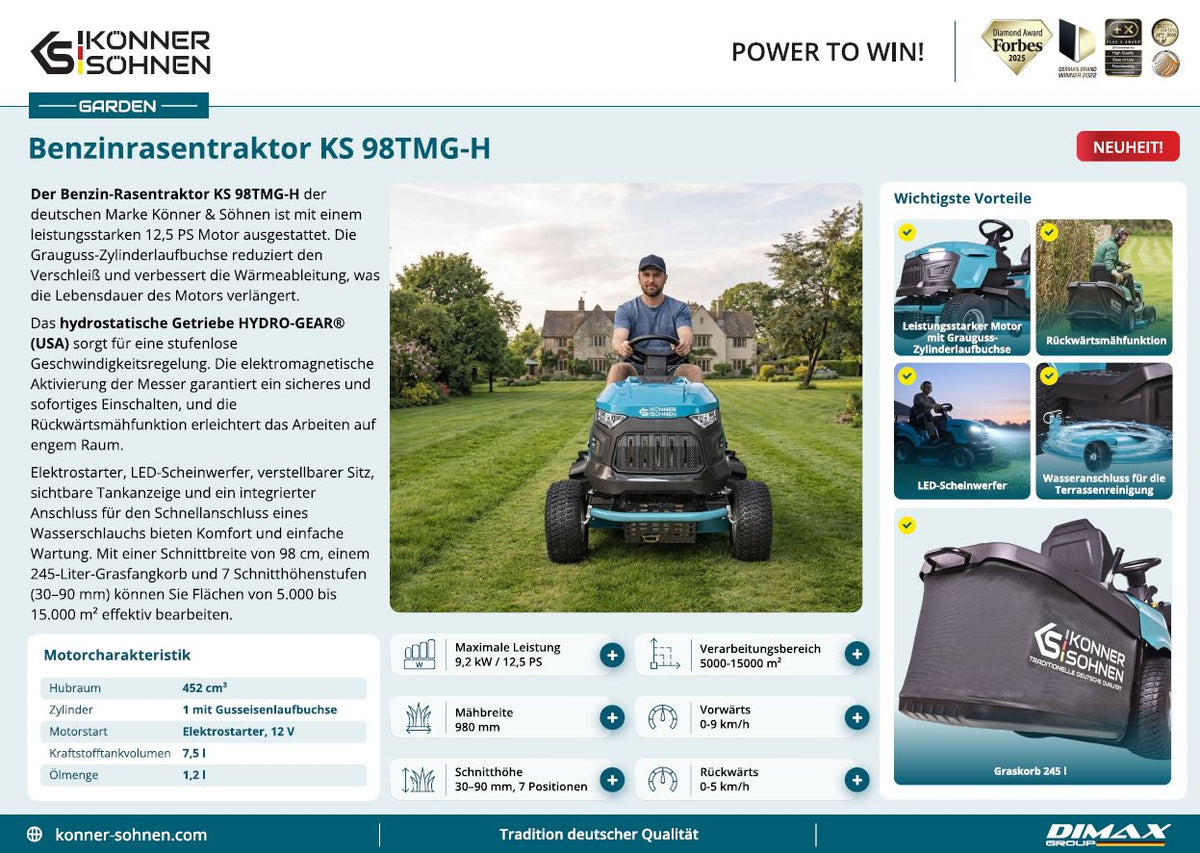

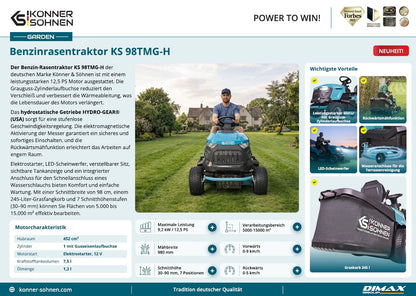

The petrol lawn tractor KS 98TMG-H from the German brand Könner & Söhnen is equipped with a powerful 12.5 HP engine. The cast iron cylinder sleeve reduces wear and improves heat exchange, extending the engine's service life. The HYDRO-GEAR® (USA) hydrostatic transmission provides stepless speed control while driving. The electromagnetic blade engagement guarantees safe and immediate activation, while the reverse mowing function makes working in tight areas easier. Electric start, LED headlights, an adjustable seat, a visible fuel level, and an integrated connector for quick water hose attachment ensure comfort and easy maintenance. The 98 cm cutting width, 245 L grass catcher, and 7 cutting height levels (30–90 mm) allow for efficient maintenance of areas from 5,000 to 15,000 m².

Specifications

Wheelbase, mm	1170
Tire pressure front/rear, bar	1.5/1.8
Wheels	Front tire 15×600-6, Rear tire 18×850-8
Max. incline	10°
Max. permissible vertical (horizontal) force on the tow hitch, N/kg	250/25 (250/25)
Max. weight of equipment to be towed on an incline, kg	100
Engine model	DV452
Engine power, HP/kW	12.5/9.2
Engine speed, rpm	2800
Cylinders	1 / cast iron sleeve
Displacement, cm3	452
Fuel tank capacity, l	7.5
Starter	Electric start, 12V
Engine oil capacity, l	1.2
Fuel type	E10 / 92
Oil	SAE 15W40-SJ (-15° C SAE 10W40-SJ)
Battery capacity	12V, 18 Ah
Spark plug gap, mm	0.7–0.8

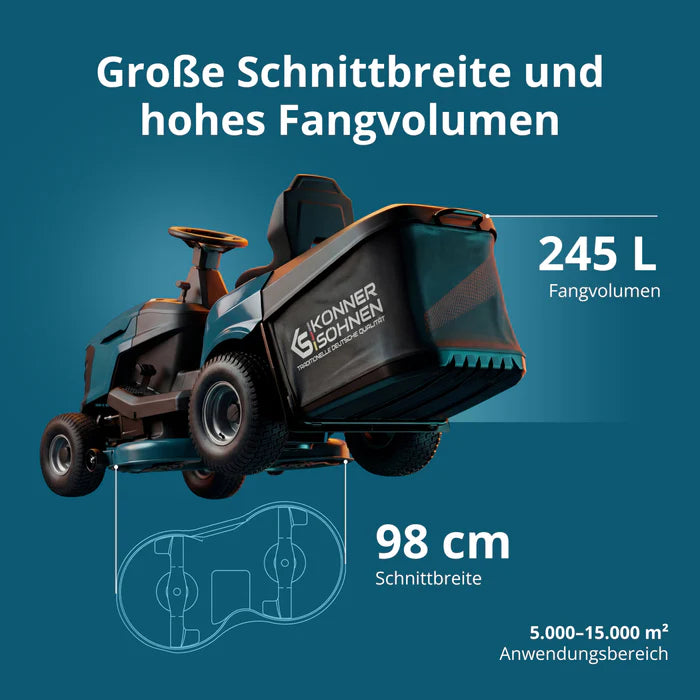

Cutting width, mm	980
Cutting height	30–90 mm, 7 positions
Water connection	Quick connector

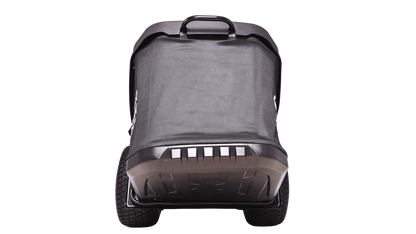

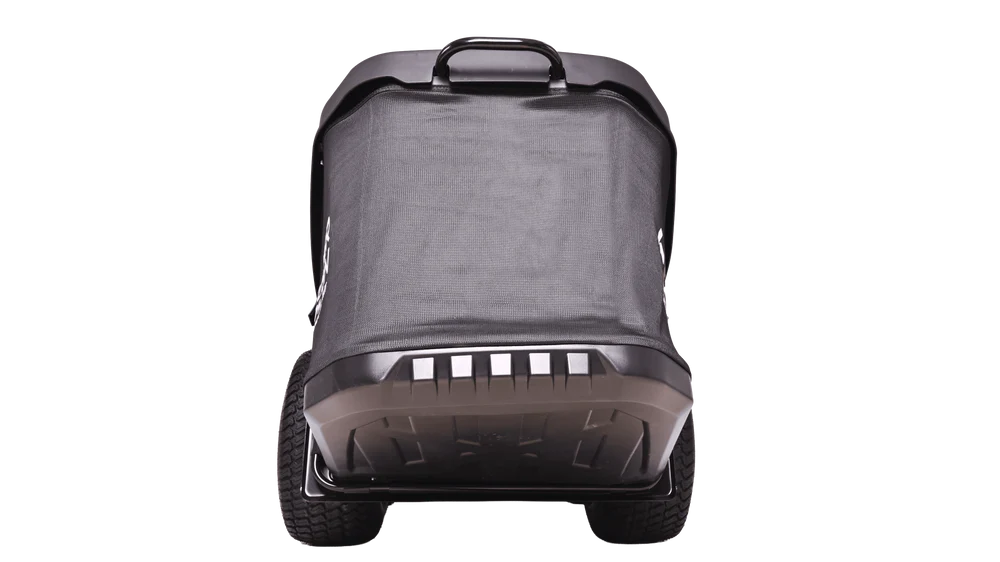

Grass catcher, l	245
Speed	Forward speed 9 km/h, Reverse speed 5 km/h
Vibration level	Whole-body vibration 1.263 m/s², Hand-arm vibration 2.866 m/s²
Sound pressure level at operator's ear, dB (A)	86.3
Equipment	Lawn tractor, battery, tool kit, user manual, engine oil funnel, ignition key
Net dimensions (LxWxH), mm	1040×2360×1100
Net weight, kg	200
Gross weight, kg	242.5
SKU	KS 98TMG-H
Barcode	4260405369225
